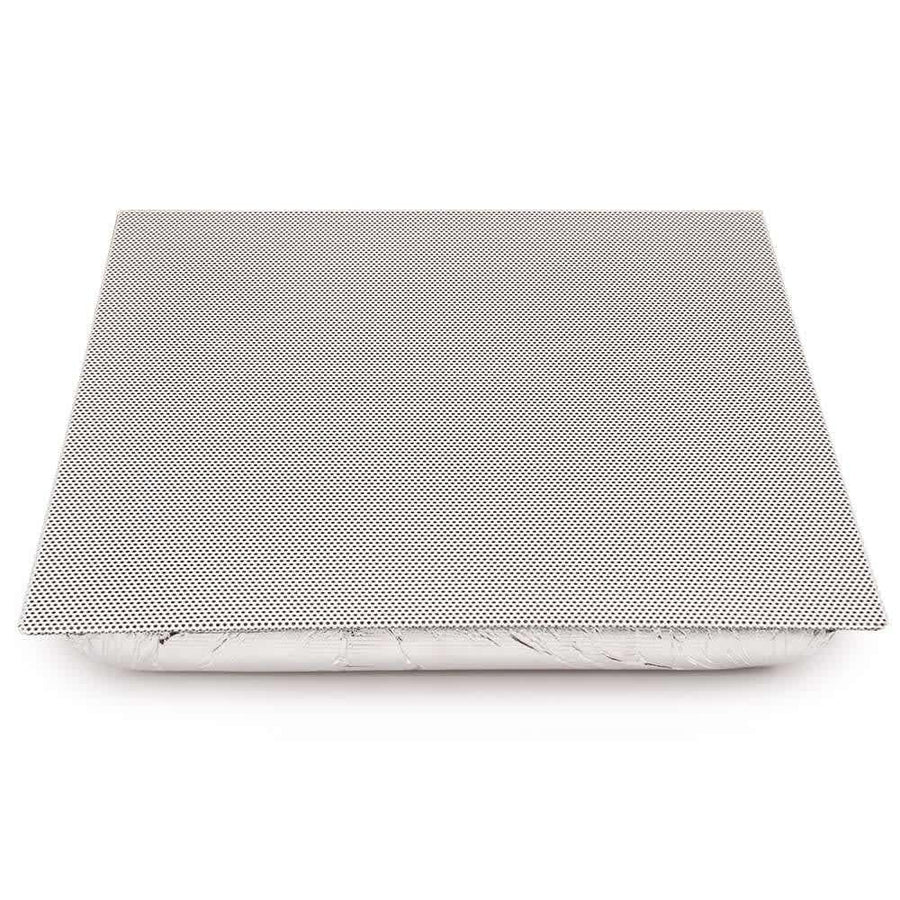

2x2 Drop in Ceiling Speaker - 70V - Plenum Rated
Plenum-rated 2x2 drop-in ceiling speaker with 100° coverage angle and 70V/25V transformer taps
The C2G CG41509 is a 2x2 drop-in ceiling speaker designed to integrate into standard drop-ceiling frames, making it an ideal audio solution for K-12 classrooms and multimedia presentations. This speaker utilizes a dual cone design with an 8 inch outer diameter to provide a clean, unobtrusive aesthetic while maintaining high-quality sound distribution. It features a 100° coverage angle to ensure audio reaches students throughout the entire room. Built for professional installation, the unit is CMP and FT6 rated for plenum applications and includes seismic tie-off points for secure mounting. The integrated 5 oz. magnet and transformer allow for versatile integration into 70V or 25V systems via 0.5, 1.0, 2.0, or 4.0 watt taps. For full classroom audio setups, these units can be paired with A/V controllers and RapidRun® systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Length | 23.82 in (60.5 cm) |
| Shipping Weight | 7.73 lbs (3.5 kg) |
| Color | White |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Speaker |
| TAA Compliant | Yes |
| UPC | 757120415091 |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTAATSCA |
| Warranty | Lifetime |
Resources
Questions about this part
Will the CG41509 work with my existing 70V or 25V amplifier?
Yes, the CG41509 includes a transformer with 0.5, 1.0, 2.0, and 4.0 watt taps to work with both 70V and 25V amplifiers.
Is the CG41509 suitable for installation in plenum air spaces?
Yes, this speaker is plenum rated with CMP and FT6 jacket ratings for use in air handling spaces.
What are the coverage and dispersion characteristics of this speaker?
This dual cone speaker features an 8 inch outer diameter and provides a 100° coverage angle for wide sound dispersion.
Does this speaker support seismic requirements?
Yes, the unit includes seismic tie-off points to ensure secure mounting in the ceiling.
What is the power rating for the CG41509?
The speaker has a 12W RMS EIA 426A Standard loudspeaker power rating and a maximum output of 15W @ 8 Ohms.
