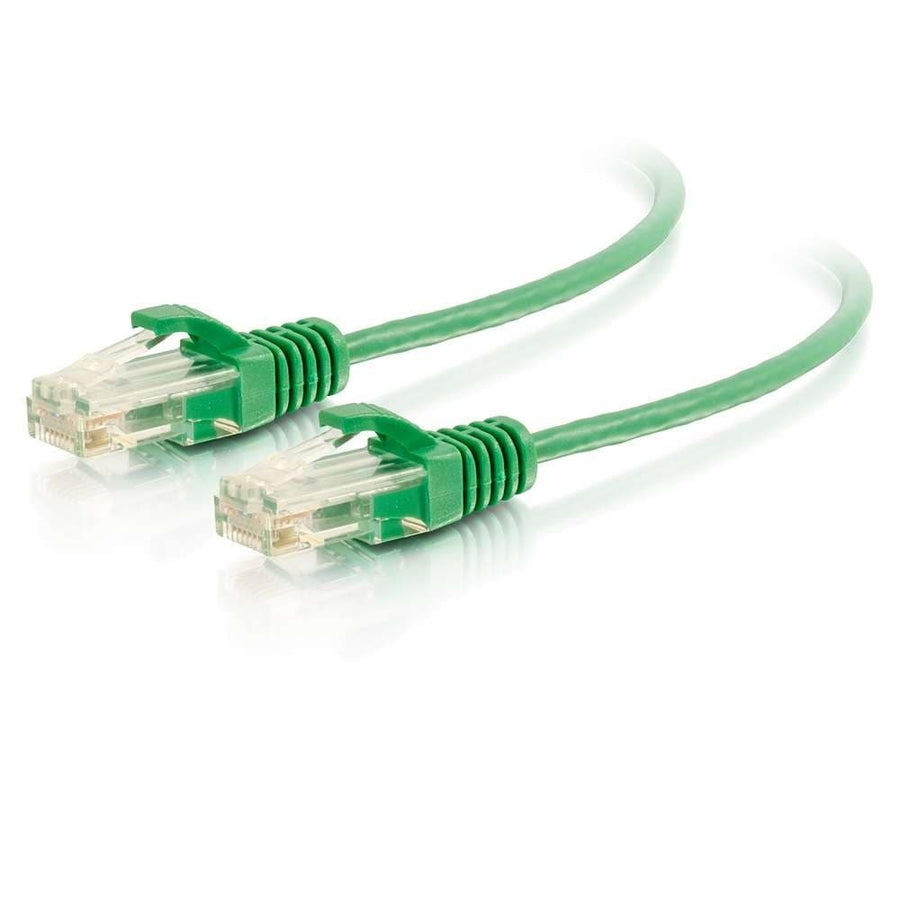

2ft (0.9m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Green
Green 2ft Cat6 Slim Snagless UTP patch cable with 28 AWG conductors for high-density environments
The C2G02222 is a 2ft (0.6m) Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable in green, specifically engineered for high-density datacenter applications. Utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This slim profile of 0.15 in (3.8 mm) minimizes the cable surface area, which facilitates increased airflow within crowded network enclosures. The reduced diameter and 0.6 in (15.2 mm) bend radius allow for easier routing through tight cable management panels. This cable is designed for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution, supporting data transfer rates of up to 10 GBPS and a bandwidth of 500 mHz. The molded snagless boot provides strain relief and prevents snags during installation. For POE/POE+ applications, it is recommended to limit bundles to 40 cables to manage heat dissipation caused by the reduced diameter. This cable complies with the TIA/EIA-568-C.2 standard and the latest ANSI/TIA-568 specifications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 2 ft (0.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022220 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 QuickConnect RJ45 Keystone Insert in Orange
WP3476OR$6.49
RJ45 Snap & Go Cat6 Keystone Insert in White
WP3560WH$12.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6 QuickConnect RJ45 Keystone Insert in White - 50 Pack
WP3476WH50$269.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Questions about this part
Is the C2G02222 suitable for high-density datacenter environments?
Yes, the 28 AWG slim design reduces diameter by 36% and improves airflow, making it ideal for crowded datacenter configurations.
What is the maximum length for a channel using slim patch cables?
For a 96 Meter Channel, you can use up to 6 meters of these slim network patch cables alongside 90 meters of horizontal cable.
Can this Cat6 cable be used for PoE or PoE+ applications?
It can be used for PoE/POE+, but it is recommended to limit cable bundles to 40 units to ensure proper heat dissipation.
What is the bend radius for the C2G02222 cable?
This cable features a minimum bend radius of 0.6 in (15.2 mm), allowing for easier routing in tight spaces.
What documentation is available for testing this slim cable?
Legrand provides the Cat6 Slim Expansion Test Data (PDF) for technical verification of the cable's performance.
