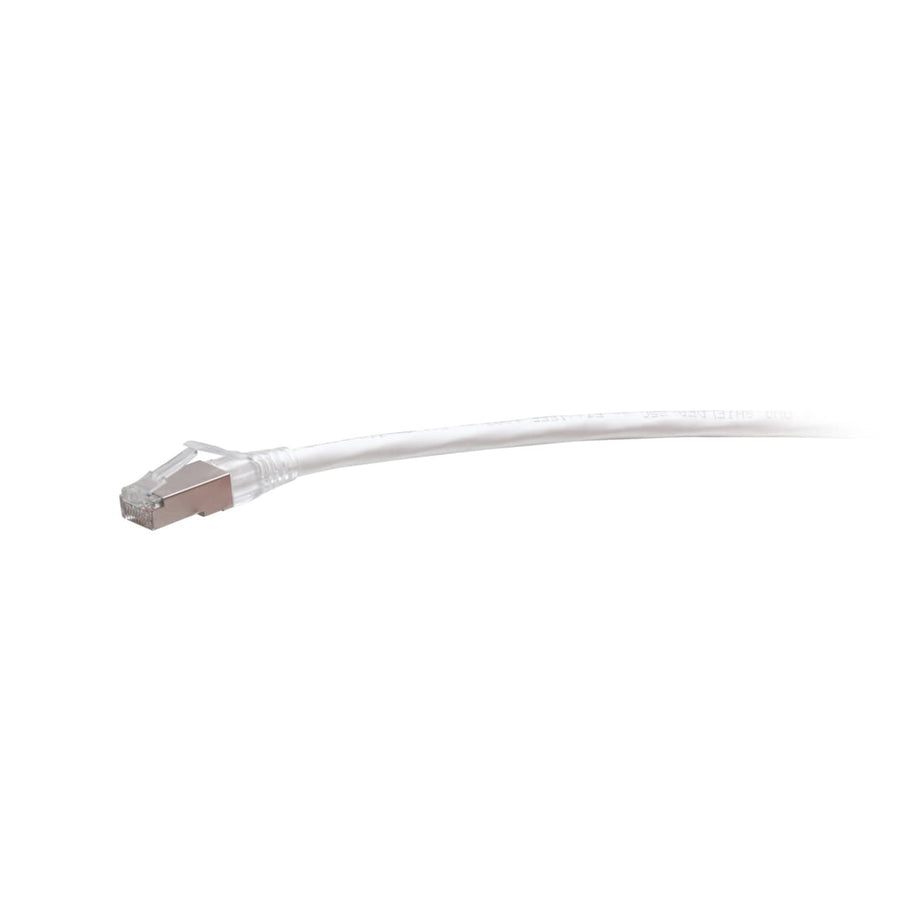

2ft (0.6m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - White
2ft (0.6m) TAA-compliant Cat6a snagless shielded STP network cable in white for 10GBase-T high-speed connectivity
The C2G43961 is a 2ft (0.6m) TAA-compliant F-Series Cat6a snagless shielded (STP) network cable in white, specifically designed to meet the stringent requirements of United States government projects and facilities. This passive cable is built with made-in-the-USA copper cabling and features an aluminum foil shield to protect 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. The snagless RJ-45 connector design protects the clips from snapping off, making it highly reliable for applications involving high insertion cycles. Each cable utilizes 26 AWG stranded copper conductors and 50-micron gold-plated contacts to maintain signal integrity for bandwidth-intensive voice, data, and video distribution. This CMR rated, riser-rated PVC jacket cable complies with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, supporting high-performance 10GBase-T ports on switches, routers, hubs, and network adapters.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.07 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439615 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43961 TAA compliant?
Yes, this cable is TAA compliant and meets the requirements for use in United States government facilities and projects.
What is the maximum data rate for this Cat6a cable?
This Cat6a cable is designed to support 10GBase-T (10 Gigabit Ethernet) high-speed network connections.
Will this cable work in a high-interference environment?
Yes, the Shielded STP construction uses aluminum foil shielding to protect against EMI, RFI, and alien crosstalk.
What is the wiring scheme for the C2G43961?
This cable utilizes the T568B wiring scheme with RJ-45 male connectors at both ends.
What is the temperature rating for this cable?
The operating temperature range for this cable is -4° to 167°F (-20° to 75°C).
