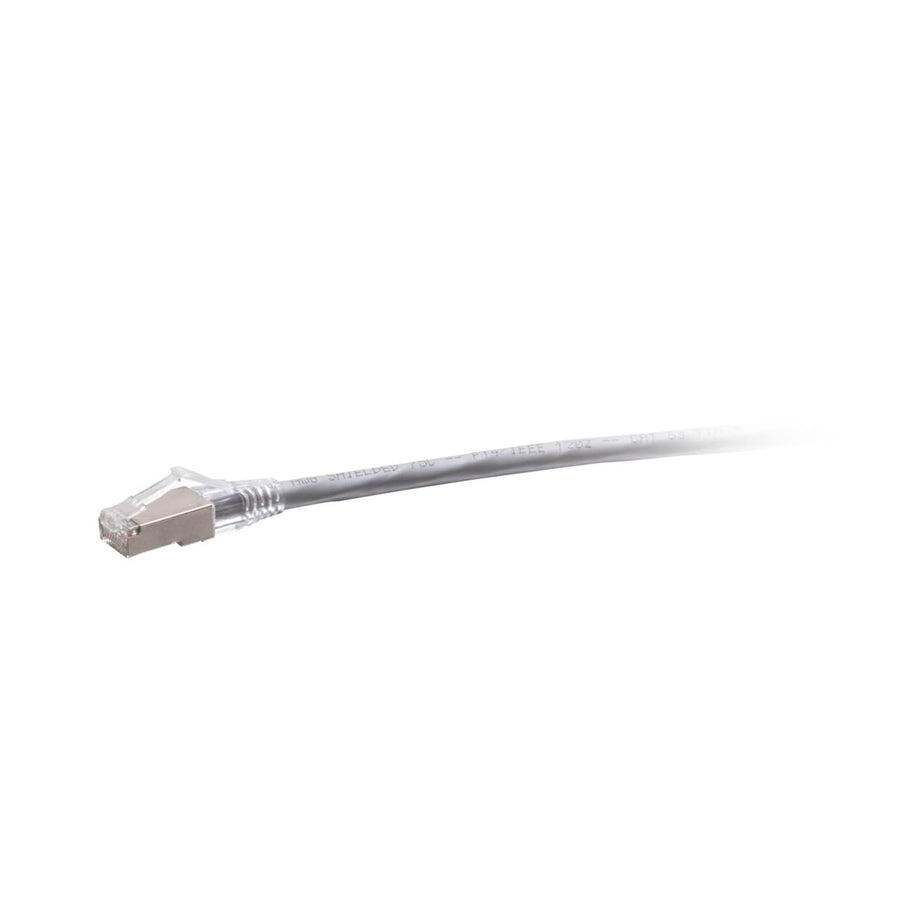

2ft (0.6m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Gray
2ft TAA-compliant Cat6a shielded patch cable, gray, optimized for 10GBase-T and EMI protection
The C2G43793 is a 2 ft (0.6 m) TAA-compliant Cat6a snagless shielded (STP) network cable in gray. Specifically engineered for high-speed 10GBase-T applications, this cable is suitable for use with network adapters, switches, routers, hubs, and patch panels. The shielded STP construction, featuring an aluminum foil shield and stranded copper conductors, provides essential protection against electromagnetic interference (EMI), Rifying (RFI), and alien crosstalk in bandwidth-intensive environments. This passive cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it a reliable choice for 10 Gigabit Ethernet deployments. The snagless RJ45 connector design protects the clips from damage during high insertion cycles, while the 50-micron gold-plated contacts ensure signal integrity. This CMR rated, riser-rated PVC jacketed cable is TAA compliant and approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.07 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437932 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43793 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for use in United States government projects and facilities.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this cable is designed for 10GBase-T ports and supports bandwidth-intensive applications by meeting ANSI/TIA-568.2-D standards.
What type of shielding does this cable use?
This is a shielded STP (Shielded Twisted Pair) cable using an aluminum foil shield to reduce impedance, structural return loss, and electromagnetic interference.
What is the connector type and wiring scheme?
This cable features (1) RJ-45 Male to (1) RJ-45 Male connectors using a T568B wiring scheme.
Is this cable suitable for riser applications?
Yes, the cable features a CMR rated, riser-rated PVC jacket suitable for such environments.
