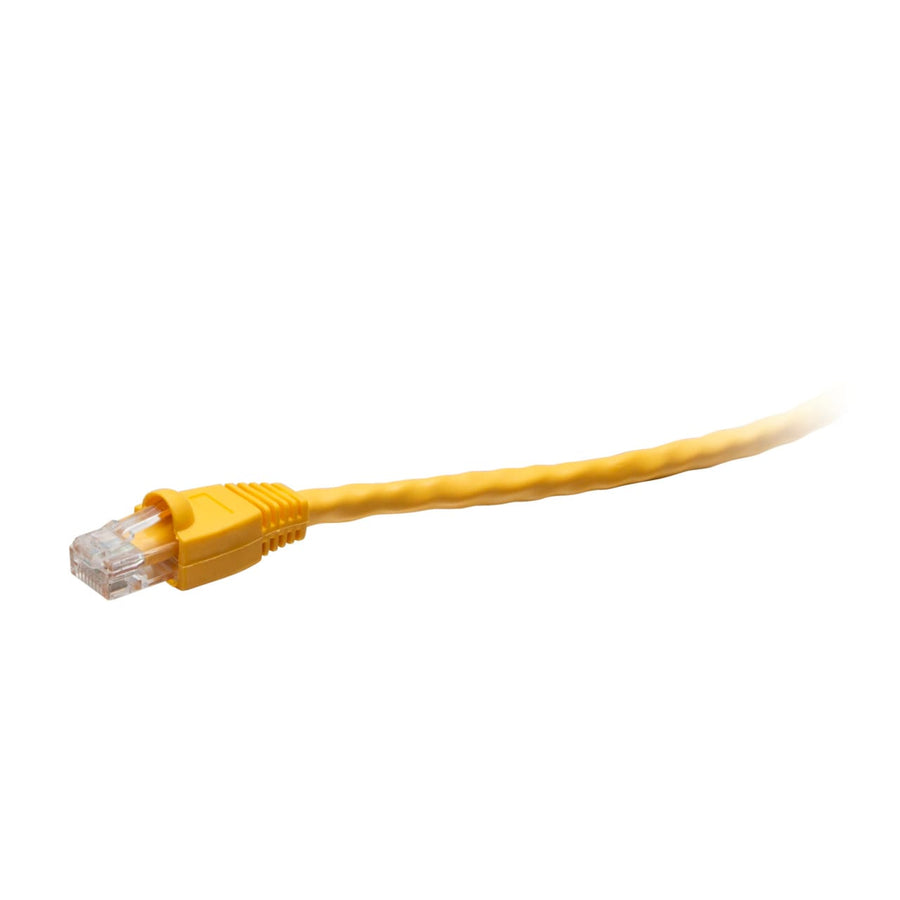

2ft (0.6m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Yellow
2ft yellow Cat6 UTP snagless cable, TAA-compliant with 50-micron gold-plated contacts and CMR rating
The C2G43508 is a 2ft (0.6m) TAA-compliant Cat6 snagless UTP network cable finished in yellow. This passive cable is constructed with high-quality, made in the USA copper cabling, providing a 600 MHz maximum frequency for reliable performance. It is designed for use with network adapters, hubs, switches, routers, and servers, meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards for 1000BASE-T (1 Gigabit Ethernet) applications. The snagless RJ-45 connector design includes a molded boot that protects the clips from being snapped off during high-insertion cycle use, while also providing extra strain relief. Each connector features 50-micron gold-plated contacts to improve signal integrity. This CMR-rated riser cable uses a T568B wiring scheme and stranded 24 AWG copper conductors, making it suitable for a wide variety of networking environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435082 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
