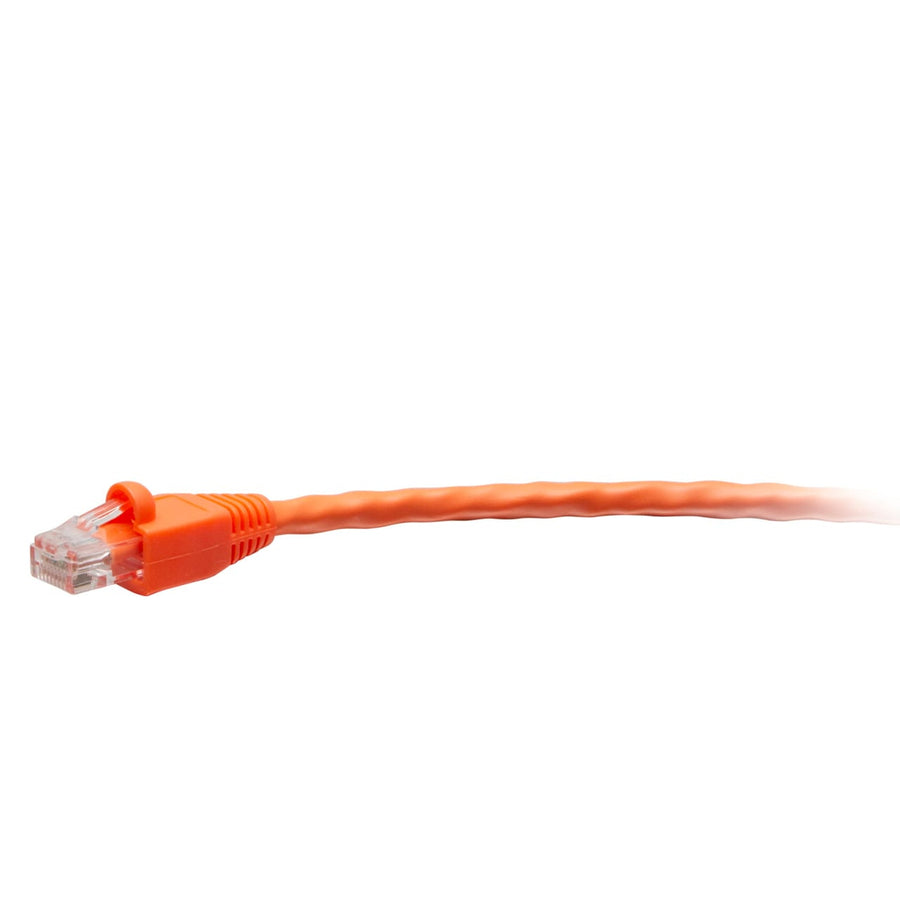

2ft (0.6m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Orange
2ft Orange Cat6 UTP network cable, TAA-compliant, with snagless RJ45 connectors and CMR rating
The C2G43529 is a 2ft (0.6m) TAA-compliant Cat6 Unshielded UTP network cable designed for secure government projects and facilities. This orange cable is constructed using high-quality, made in the USA copper stranded cabling, providing a 600 MHz maximum frequency for reliable performance in high-bandwidth applications. It is engineered for use with network adapters, hubs, switches, routers, and servers, meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards to support 1000BASE-T (1 Gigabit Ethernet) environments. The cable features a snagless RJ45 connector design that protects the clips from damage, making it an excellent choice for installations with high insertion cycles. For improved signal integrity, the connectors are equipped with 50-micron gold-plated contacts. This CMR-rated cable features a PVC jacket with a 0.22 in (5.6 mm) diameter and operates within a temperature range of -4°F to 167°F (-20°C to 75°C). This passive cable uses a T568B wiring scheme.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435297 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43529 TAA compliant for government contracts?
Yes, this is a TAA-compliant F-Series network cable approved for use in United States government projects and facilities.
What is the maximum frequency and speed support for this Cat6 cable?
This cable provides a 600 MHz maximum frequency and is rated for 1000BASE-T (1 Gigabit Ethernet) applications.
How does the snagless design help during installation?
The molded snagless boot protects the RJ45 clips from being snapped off, which is particularly beneficial in environments with frequent insertion and removal cycles.
Can I use this cable in a plenum environment?
No, this specific SKU is CMR rated (Riser Rated), which is intended for use in riser applications, not plenum spaces.
What is the wiring scheme used for this C2G cable?
The C2G43529 follows the T568B wiring scheme for its RJ45 Male to RJ45 Male connections.
