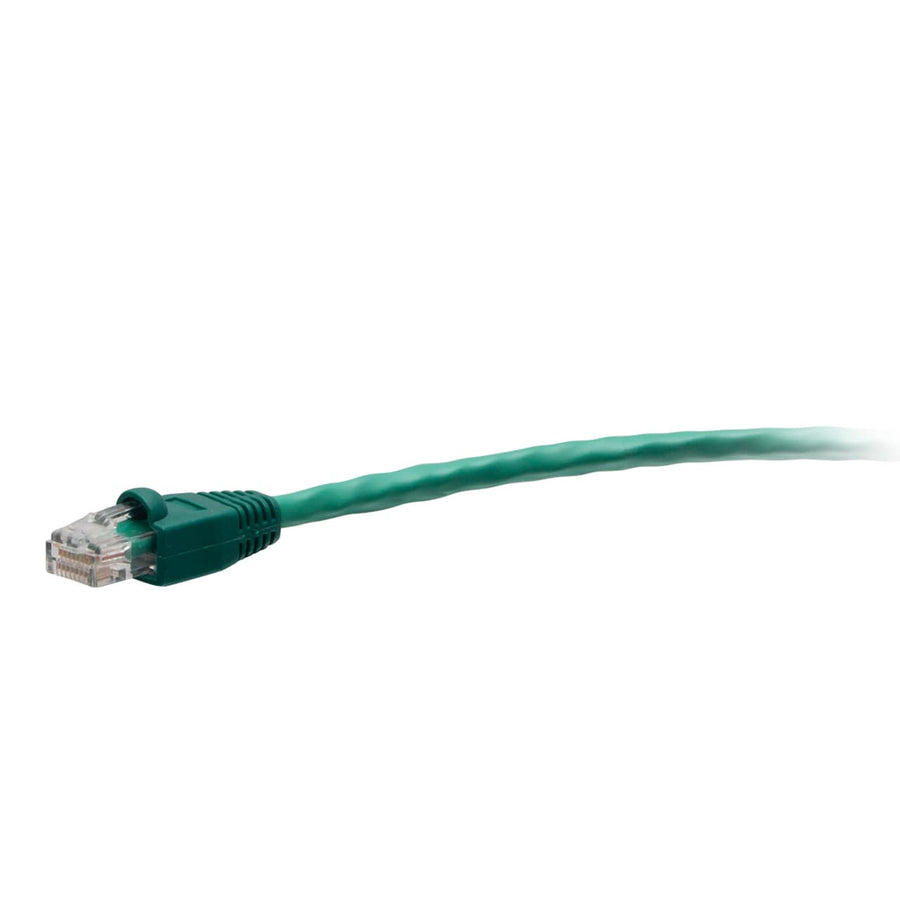

2ft (0.6m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Green
Green 2ft (0.6m) TAA-compliant Cat6 snagless UTP network cable with RJ-45 male connectors
The C2G43487 is a 2ft (0.6m) green TAA-compliant Cat6 snagless Unshielded (UTP) network cable designed for high-performance data connections. This passive cable is constructed with made-in-the-USA stranded copper conductors and 24 AWG wire gauge, providing an enhanced 600 MHz maximum frequency. It features 50-micron gold-plated contacts to improve signal integrity and a snagless RJ-45 male connector design that protects the clips from damage during high-frequency insertion cycles. This CMR rated, riser-rated PVC jacket cable is suitable for various applications, including connecting network adapters, hubs, switches, routers, and servers for 1000BASE-T (1 Gigabit Ethernet) performance. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. Because it is TAA-compliant, this cable is approved for use in United States government projects and facilities. The cable operates within a temperature range of -4° - 167°F (-20° - 75°C). It uses a T568B wiring scheme and is available with a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434870 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43487 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable, making it approved for United States government projects and facilities.
What is the maximum frequency and performance for this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency, supporting 1000BASE-T (1 Gigabit Ethernet) applications.
What is the wiring scheme and connector type for the C2G43487?
The cable features two RJ-45 male connectors and follows the T568B wiring scheme.
What is the jacket rating for this green network cable?
This cable has a CMR rated, riser-rated PVC jacket suitable for indoor use.
What is the temperature operating range for the C2G43487?
The cable is rated to operate in temperatures ranging from -4° - 167°F (-20° - 75°C).
