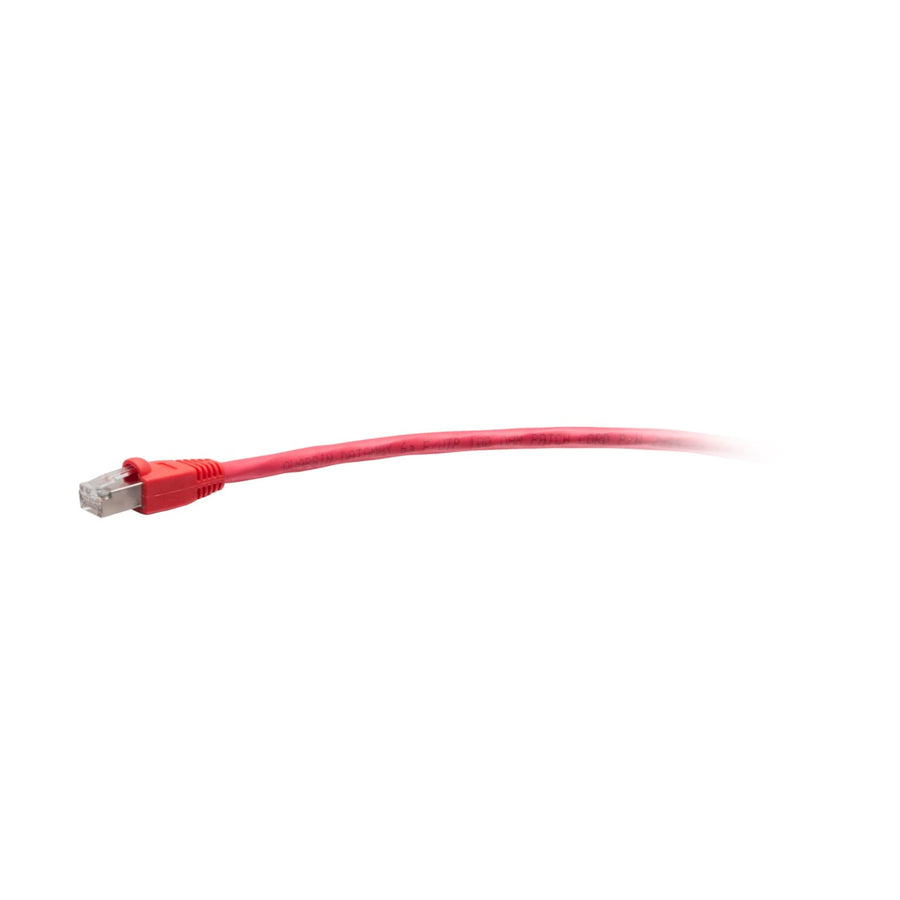

2ft (0.6m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Red
2ft Red TAA-compliant Cat6 STP snagless network cable, shielded to counter EMI and RFI in high-speed environments
The C2G43751 is a 2ft (0.6 m) TAA-compliant Cat6 snagless shielded (STP) network cable in red. Designed for environments where electromagnetic interference (EMI) or radio frequency interference (RFI) can disrupt data, this cable utilizes an aluminum foil shield and a copper conductor to protect high-speed network transmissions. It is built using made in the USA raw cable, ensuring consistent and reliable performance for critical infrastructure. This passive cable features 50-micron gold-plated contacts to improve signal integrity and a snagless RJ-45 connector design to protect the clips from damage during high insertion cycles. It is rated for CMR riser applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. This cable is suitable for connecting network adapters, hubs, switches, routers, and servers, supporting 1000BASE-T (1 Gigabit Ethernet) applications. It is TAA compliant and comes with a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437512 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43751 TAA compliant?
Yes, this cable is TAA compliant, making it approved for use in United States government projects and facilities.
What is the maximum speed supported by this Cat6 cable?
This cable meets ANSI/TIA-568.2-D standards and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What type of shielding does this cable provide?
This is a Shielded STP cable that uses an aluminum foil shield to counter electromagnetic interference (EMI) and radio frequency interference (RFI).
Does this cable feature snagless connectors?
Yes, it uses a snagless RJ-45 connector design, which protects the clips from being snapped off during installation or high-frequency use.
What is the warranty for the C2G43751?
This product is backed by a lifetime warranty from the manufacturer.
