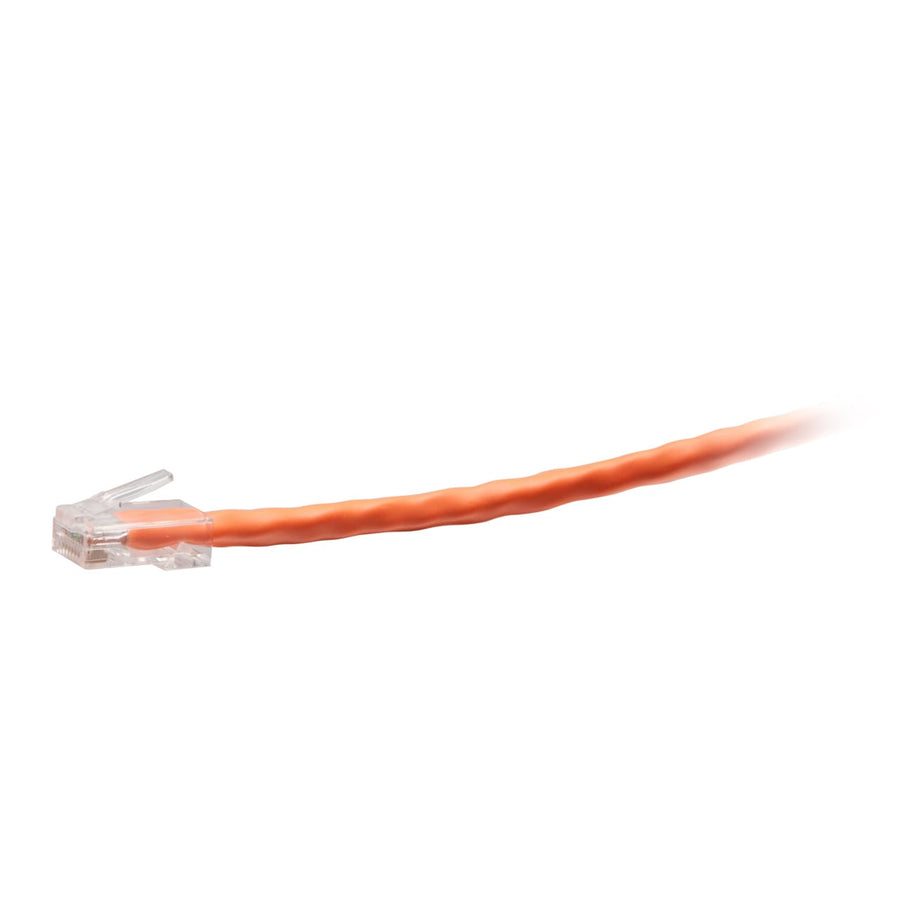

2ft (0.6m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Orange
2ft (0.6m) TAA-compliant Cat6 UTP network cable in orange, featuring CMR riser-rated jacket and 50-micron gold-plated contacts
The C2G43661 is a 2ft (0.6m) TAA-compliant Cat6 Unshielded Twisted Pair (UTP) network cable designed to meet the rigorous requirements of United States government projects and facilities. This orange, non-booted cable is built with high-quality, made-in-the-USA copper cabling to ensure consistent and reliable performance for network adapters, hubs, switches, routers, and servers. It supports 1000BASE-T (1 Gigabit Ethernet) applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The cable features a 0.22 in (5.6 mm) diameter, 24 AWG stranded copper conductors, and a CMR rated PVC jacket suitable for riser applications. For enhanced signal integrity, the RJ-45 male connectors are equipped with 50-micron gold-plated contacts. This passive cable operates within a temperature range of -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436614 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43661 TAA compliant?
Yes, this C2G43661 network cable is TAA compliant, making it suitable for use in United States government projects and facilities.
What is the maximum operating temperature for this Cat6 cable?
This cable is rated for operation in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
What termination standard does this orange Cat6 cable use?
The C2G43661 uses the T568B wiring scheme and features standard RJ-45 male connectors.
Can this cable be used in a riser application?
Yes, the cable features a CMR rated PVC jacket, which is approved for riser applications.
Does this cable support Gigabit Ethernet?
Yes, this Cat6 cable meets ANSI/TIA-568.2-D standards to support 1000BASE-T (1 Gigabit Ethernet) applications.
