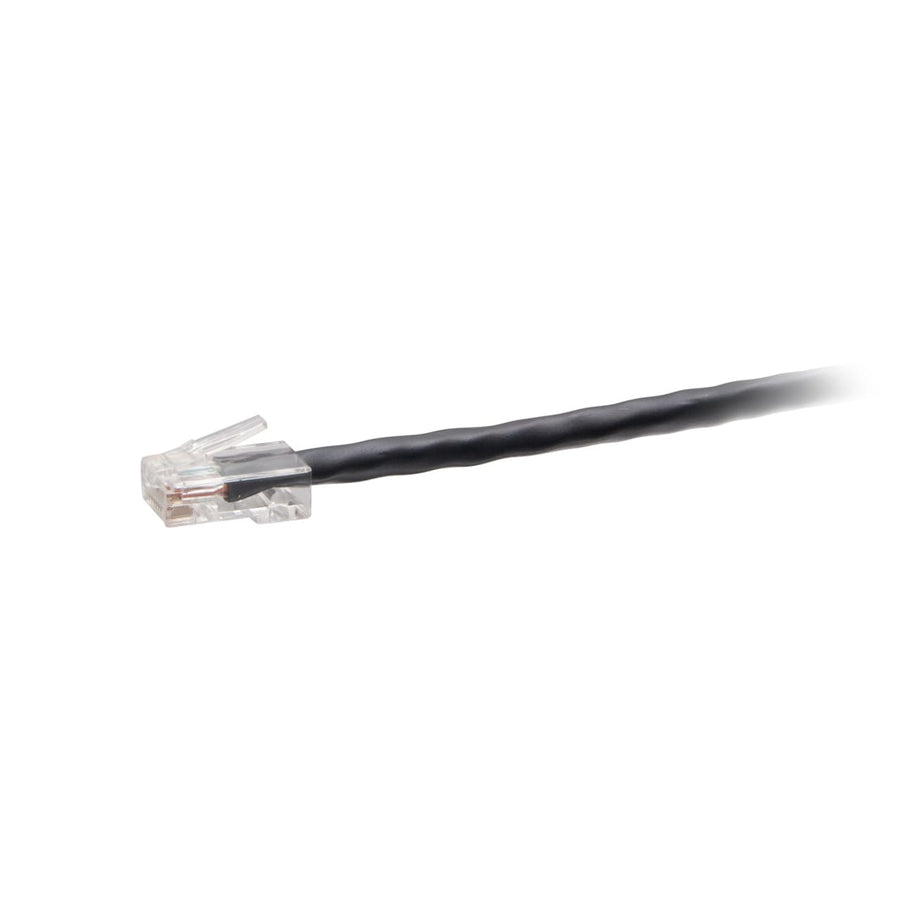

2ft (0.6m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Black
2ft TAA-compliant Cat6 UTP network cable, 50-micron gold-plated contacts, CMR-rated black PVC jacket
The C2G43625 is a 2ft (0.6m) TAA-compliant Cat6 non-booted unshielded (UTP) network cable designed for high-performance connectivity in government-regulated environments. This passive cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it suitable for 1000BASE-T 1 Gigabit Ethernet applications. It features high-quality, made in the USA copper stranded conductors and a 24 AWG wire gauge to ensure reliable signal transmission. The RJ-45 male connectors are equipped with 50-micron gold-plated contacts to maintain signal integrity in critical network environments. This black cable features a CMR-rated PVC jacket suitable for riser applications and operates within a temperature range of -4°F to 167°F (-20°C to 75°C). For larger installations, the F-Series includes other lengths up to 25ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436256 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43625 TAA compliant?
Yes, this C2G43625 cable is TAA compliant and approved for use in United States government facilities and projects.
What is the maximum frequency for this Cat6 cable?
This Cat6 cable features an enhanced 600 MHz maximum frequency, providing higher performance than standard Cat6 cables.
Will this cable work for 1 Gigabit Ethernet?
Yes, this cable meets ANSI/TIA-568.2-D standards for supporting 1000BASE-T 1 Gigabit Ethernet applications.
What is the jacket rating for the C2G43625?
This cable features a CMR-rated PVC jacket and is rated for riser applications.
What are the connector types on this cable?
The C2G43625 is equipped with two RJ-45 male connectors using 50-micron gold-plated contacts.
