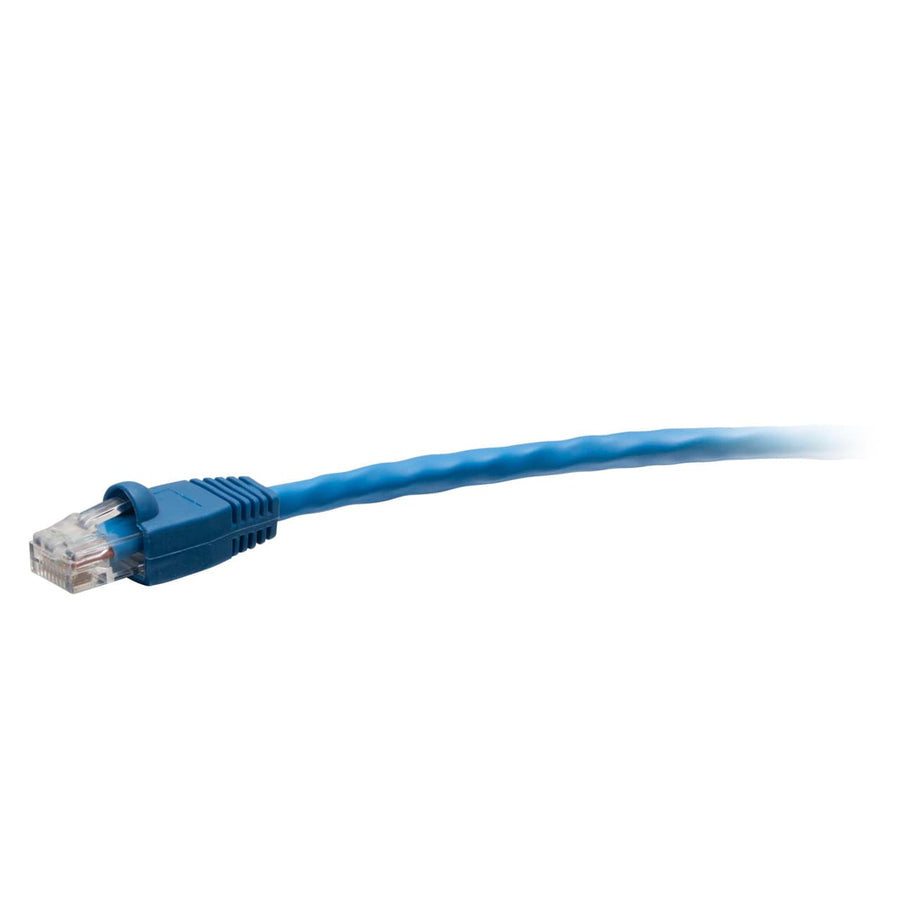

2ft (0.6m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable - Blue
2 ft (0.6 m) TAA-compliant Cat5e UTP cable, blue, with snagless RJ-45 connectors and CMR rating
The C2G43409 is a 2 ft (0.6 m) TAA-compliant Cat5e Unshielded Twisted Pair (UTP) network cable designed for high-performance connectivity in sensitive environments. This blue cable is specifically approved for use in United States government projects and facilities, meeting the stringent requirements for TAA compliance. It is built with high-quality, made in the USA copper cabling that provides a maximum frequency of 350 MHz, ensuring it exceeds standard Cat5e performance for applications like 1000BASE-T (1 Gigabit Ethernet). The cable features a snagless RJ-45 male to male connector design, which includes a molded boot to protect the clips from snapping during installation or high-cycle use. The construction utilizes 24 AWG stranded copper conductors and 50-micron gold-plated contacts to maintain signal integrity. This CMR-rated riser cable uses a PVC jacket and is rated for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.5 mm) |
| Cable Length | 2 ft (0.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434092 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
17 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP1705NAV1$69.99
Questions about this part
Is the C2G43409 TAA compliant for government use?
Yes, this C2G43409 cable is TAA compliant, making it approved for use in United States government projects and facilities.
What is the maximum frequency and speed for this Cat5e cable?
The C2G43409 supports up to 1000BASE-T (1 Gigabit Ethernet) with an enhanced 350 MHz maximum frequency.
What type of jacket rating does this cable have?
This is a CMR-rated riser cable with a PVC jacket, suitable for use in vertical paths between floors.
Will the connector clips break easily during installation?
No, the snagless RJ-45 design includes a molded boot that protects the clips from being snapped off during installation or high-insertion cycles.
What is the operating temperature range for the C2G43409?
This cable is rated to operate in temperatures from -4°F to 167°F (-20°C to 75°C).
