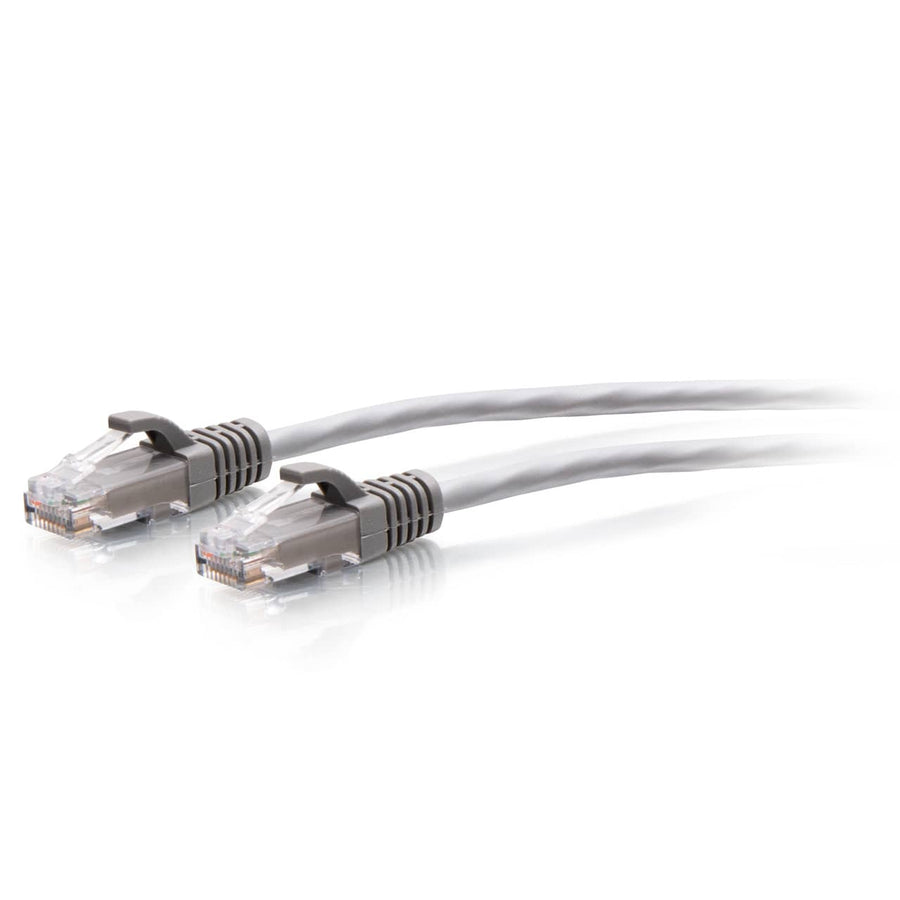

2ft (0.6m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Gray
2ft Cat6a slim unshielded UTP patch cable, 28AWG for high-density applications, snagless boot, gray
The C2G30112 is a 2ft (0.6m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed for high-density cabling environments like datacenters and large conference rooms. Featuring a 28AWG construction, this slim cable has a diameter of 0.19 in (4.8 mm), which allows for increased airflow and greater flexibility in tight spaces compared to standard Cat6 cables. The molded, snagless boot provides extra strain relief and prevents unwanted snags during installation. This Cat6a cable supports data transfer rates of up to 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. The gray PVC jacket and gold-plated RJ-45 male contacts ensure reliable connectivity for PoE and VoIP applications. This unshielded UTP slim cable is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.08 lbs (0 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301127 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
