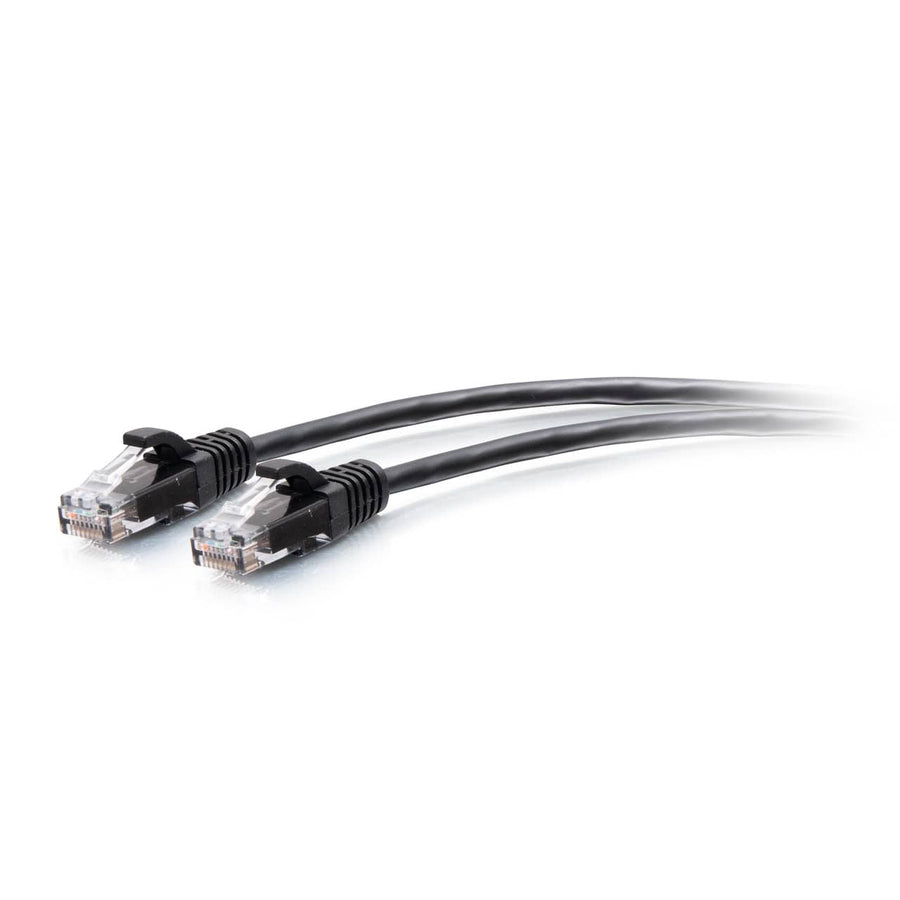

2ft (0.6m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Black
2ft Cat6a slim UTP patch cable with 28AWG stranded copper conductors and black snagless boots for high-density environments
The C2G30140 is a 2ft (0.6m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed specifically for high-density cabling environments like data centers and large conference rooms. Utilizing 28AWG stranded copper conductors, this slim cable provides significantly increased flexibility for installations in tight spaces where cable congestion is an issue. The reduced 0.19 in (4.8 mm) cable diameter improves airflow within equipment racks compared to standard Cat6 cables. Each cable features RJ-45 male connectors with gold-plated contacts and a molded, snagless PVC boot to provide strain relief and prevent accidental disconnects during installation. This Cat6a solution supports data transfer rates up to 10 GBPS, meeting ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. This performance level makes it highly effective for Power over Ethernet (PoE) and Voice over IP (VoIP) applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.08 lbs (0 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301400 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
Is the C2G30140 suitable for high-density data center use?
Yes, the 28AWG slim construction and 0.19 in (4.8 mm) diameter are designed for high-density applications to maximize airflow and flexibility.
What is the maximum data transfer rate for this Cat6a cable?
The C2G30140 supports data transfer rates up to 10 GBPS, meeting ANSI/TIA-568.2-D and ISO/IEC 11801-1 requirements.
What type of shielding does this patch cable use?
This is an Unshielded UTP (UTP) slim cable with stranded copper conductors.
Does this cable support Power over Ethernet (PoE)?
Yes, the Cat6a technology provides the necessary bandwidth and performance required for PoE and VoIP situations.
What is the warranty for the C2G30140?
This cable is backed by a lifetime warranty.
