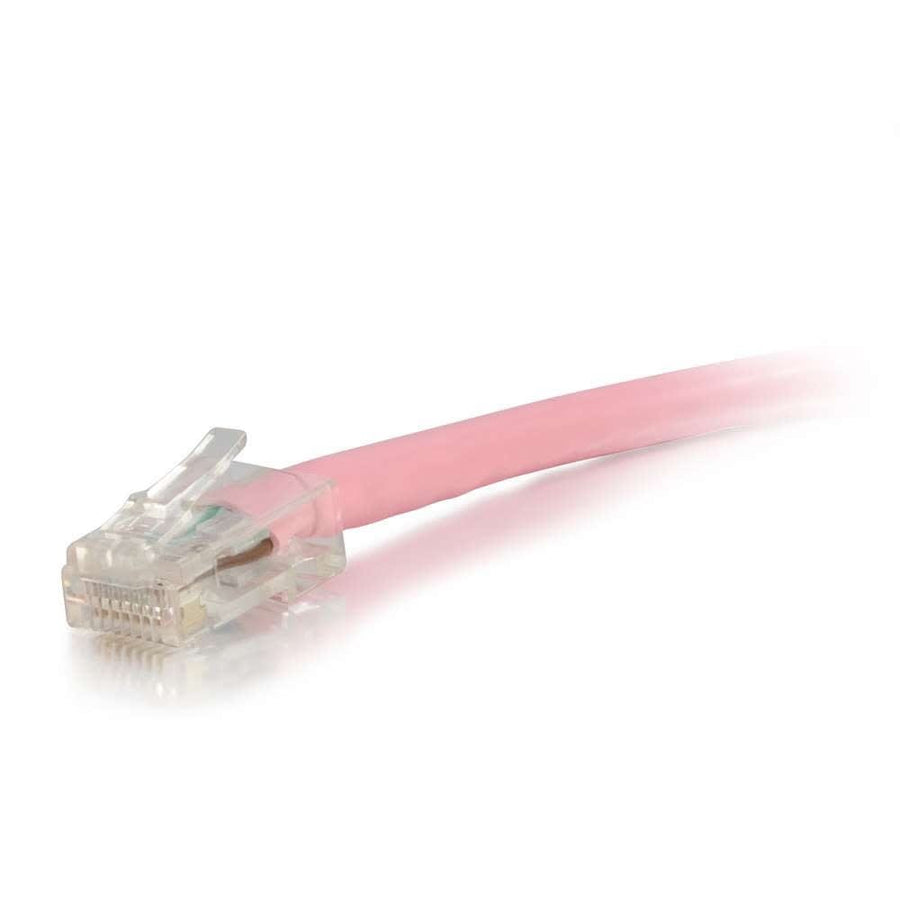

2ft (0.6m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Pink
2ft (0.6m) pink Cat6 UTP unshielded Ethernet patch cable with RJ-45 male connectors
The C2G CG04254 is a 2ft (0.6m) Cat6 unshielded UTP Ethernet network patch cable in pink, designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all Cat6 TIA/EIA standards and is constructed with high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to help maintain the necessary twist-spacing throughout the line, extending to the termination point to reduce both impedance and structural return loss (SRL). It features RJ-45 male connectors on both ends and utilizes a T568B wiring scheme. This non-booted cable has a 0.24 in (6 mm) diameter and a PVC jacket rated for standard use with a temperature rating of up to 75°C. The pink color facilitates easy color-coding within complex network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042549 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
Questions about this part
What is the wiring scheme for the CG04254?
The CG04254 follows the T568B wiring scheme and uses RJ-45 male connectors.
Is this Cat6 cable shielded or unshielded?
This is an unshielded UTP (Unshielded Twisted Pair) cable with a 0.24 in (6 mm) diameter.
What are the electrical specifications for this Cat6 cable?
It features a maximum conductor DC resistance of 9.38#/100m, 100# impedance, and a capacitance of 5600pf/100m.
What is the maximum temperature rating for the CG04254?
This cable has a temperature rating of up to 75°C.
Does this cable include a boot on the connectors?
No, this is a non-booted Cat6 patch cable series SKU.
