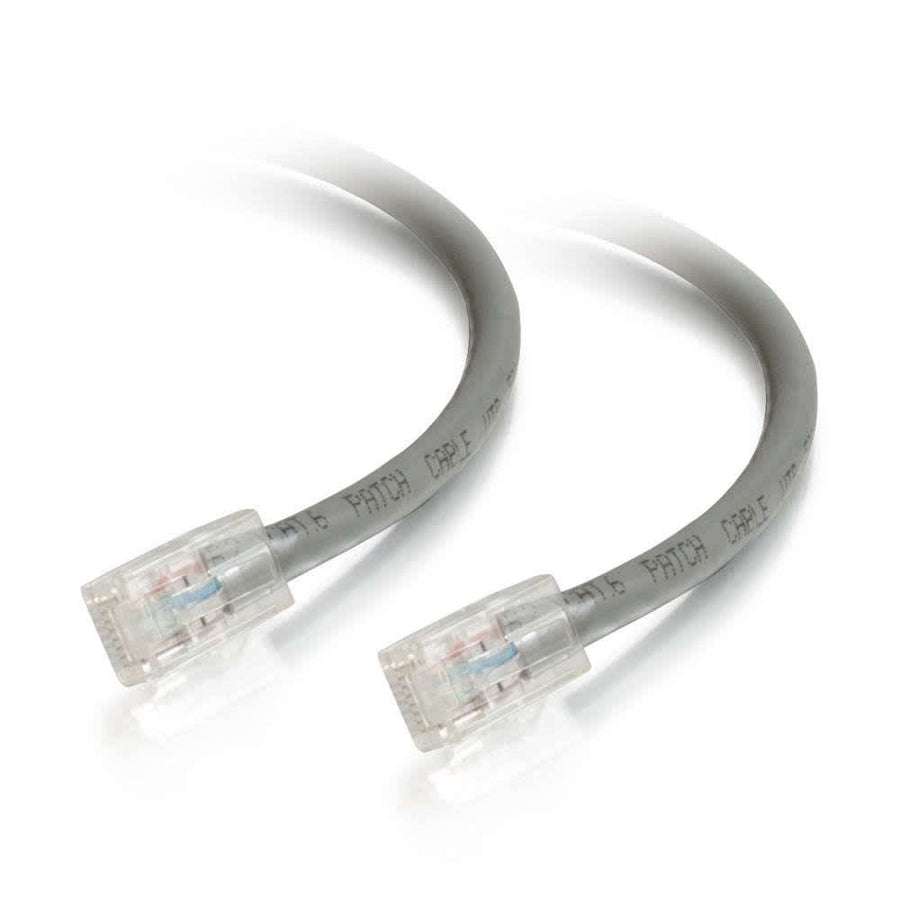

2ft (0.6m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
2ft Cat6 unshielded UTP Ethernet patch cable in gray with stranded copper conductors and T568B wiring
The C2G CG04065 is a 2ft (0.6m) Cat6 unshielded UTP Ethernet patch cable designed for high-bandwidth voice, data, and video distribution in fast Ethernet and Gigabit computer networks. This gray cable uses stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels and meets all Cat6 TIA/EIA standards. Each individual pair is bonded together to help maintain twist-spacing through the termination point, which significantly reduces impedance and structural return loss (SRL). This cable features a 0.24 in (6 mm) diameter and a non-booted connector type with RJ-45 male ends on both sides. The wiring follows the T568B scheme, and the PVC jacket is rated for a temperature range up to 75°C. This UTP cable is a reliable solution for short-length connections within a rack or workstation setup where high-speed performance is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120040651 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the C2G CG04065 TAA compliant?
No, this SKU is not TAA compliant.
What wiring standard is used for this Cat6 cable?
The CG04065 utilizes the T568B wiring scheme for its RJ-45 male connectors.
Can I use this cable for high-bandwidth video distribution?
Yes, this Cat6 cable is designed for bandwidth-intensive voice, data, or video applications.
What is the conductor type for the CG04065?
This cable features stranded copper conductors to help reduce impedance and return loss.
What certifications does this patch cable hold?
This product is listed with CE, REACH, and RoHS certifications.
