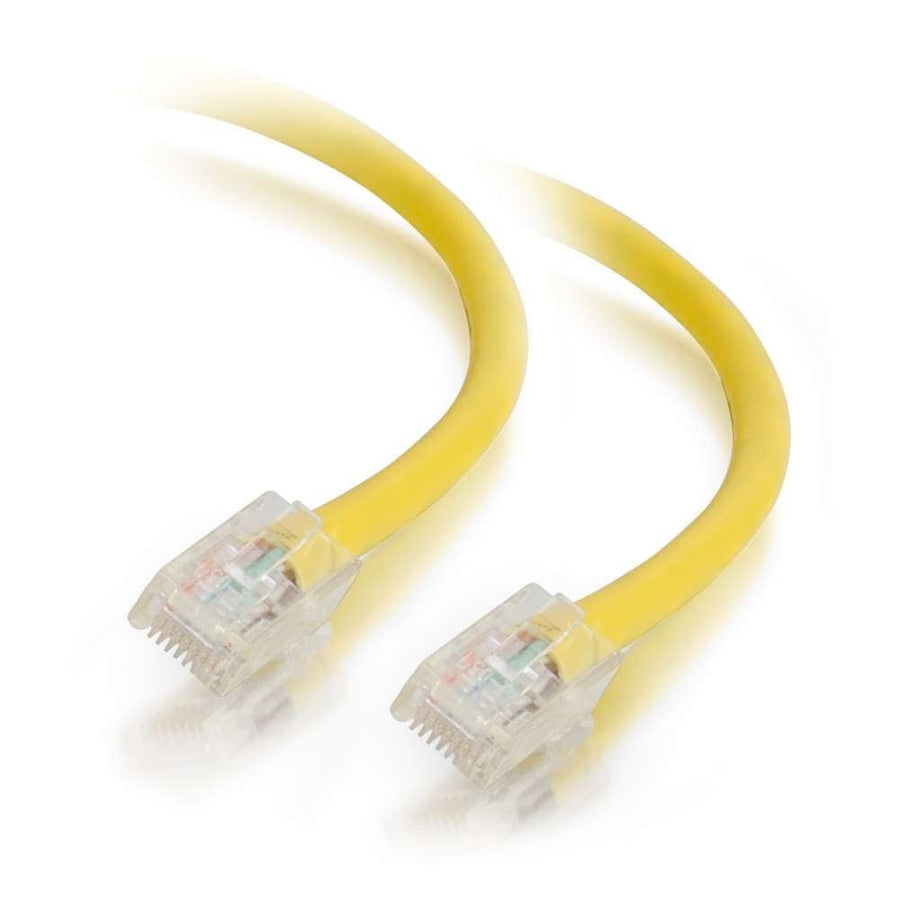

2ft (0.6m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Yellow
2ft Cat5e non-booted unshielded UTP Ethernet patch cable in yellow with stranded copper conductors
The C2G CG24669 is a 2ft (0.6m) Cat5e non-booted Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth applications involving voice, data, or video distribution. This cable is constructed with stranded copper conductors, which help minimize Near-End Crosstalk (NEXT) levels. The wiring follows the T568B scheme and is built to meet all Cat5e TIA/EIA standards, significantly reducing impedance and structural return loss (SRL). Each individual pair is bonded to maintain consistent twist-spacing from the connector to the termination point. With a 0.21 in (5.3 mm) cable diameter and a PVC jacket, this cable is suitable for connections between network adapters, hubs, switches, and routers. This specific yellow SKU is part of a larger series that offers different color-coding options and lengths up to 150ft to assist with organized network management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 13
| Category Performance Application | Cat5e |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring scheme for the CG24669?
The CG24669 uses the T568B wiring scheme for its RJ-45 male connectors.
Can I use this cable for high-bandwidth video applications?
Yes, this Cat5e cable is designed for bandwidth-intensive applications including video distribution, voice, and data.
Is this cable shielded or unshielded?
The CG24669 is an unshielded (UTP) cable, utilizing twisted pair wires to minimize crosstalk.
What is the conductor material used in this patch cable?
This cable is constructed with high-quality stranded copper conductors.
Are there other color options for this series?
Yes, this series is available in 10 different colors to assist with network color-coding.
