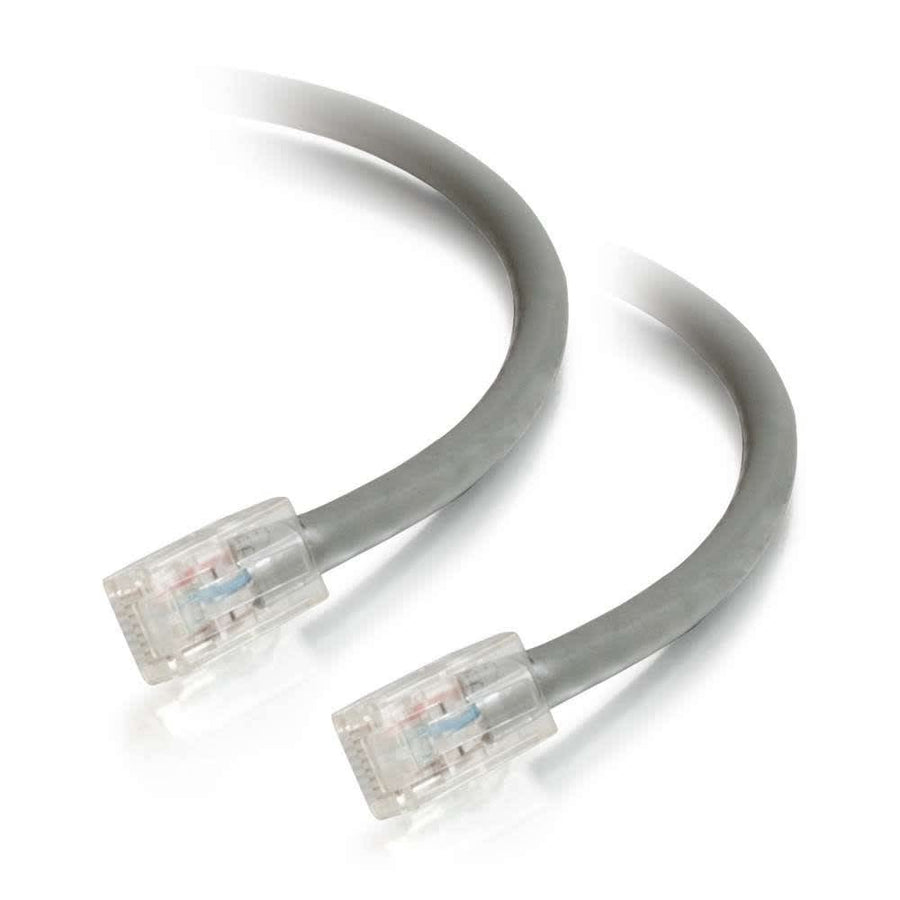

2ft (0.6m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
2ft Cat5e Unshielded UTP Ethernet patch cable in Gray with RJ-45 male connectors and stranded copper conductors
The C2G CG24960 is a 2ft (0.6m) Cat5e Unshielded UTP Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet computer networks. This cable utilizes stranded copper conductors with a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. Built to meet all Cat5e TIA/EIA standards, the design reduces both impedance and structural return loss (SRL) by bonding individual pairs together to maintain twist-spacing through the termination point. Each cable features two RJ-45 male connectors in a non-booted configuration, following the T568B wiring scheme. The 0.21 in (5.3 mm) diameter jacket is made of PVC and carries a standard/non-rated CMG rating for in-wall use. This gray cable is ideal for connecting network adapters, hubs, switches, and routers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 13
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring scheme for the CG24960?
The CG24960 follows the T568B wiring scheme for its two RJ-45 male connectors.
What type of construction does this Cat5e cable use?
This is an Unshielded Twisted Pair (UTP) cable featuring stranded copper conductors for network adapters, hubs, or switches.
Is the CG24960 suitable for in-wall installation?
Yes, the jacket is CMG in-wall rated and made of PVC material.
What are the physical dimensions of this cable?
The cable has a length of 2 ft (0.6 m) and a cable diameter of 0.21 in (5.3 mm).
Does this cable include a boot for the connectors?
No, the CG24960 is a non-booted patch cable.
