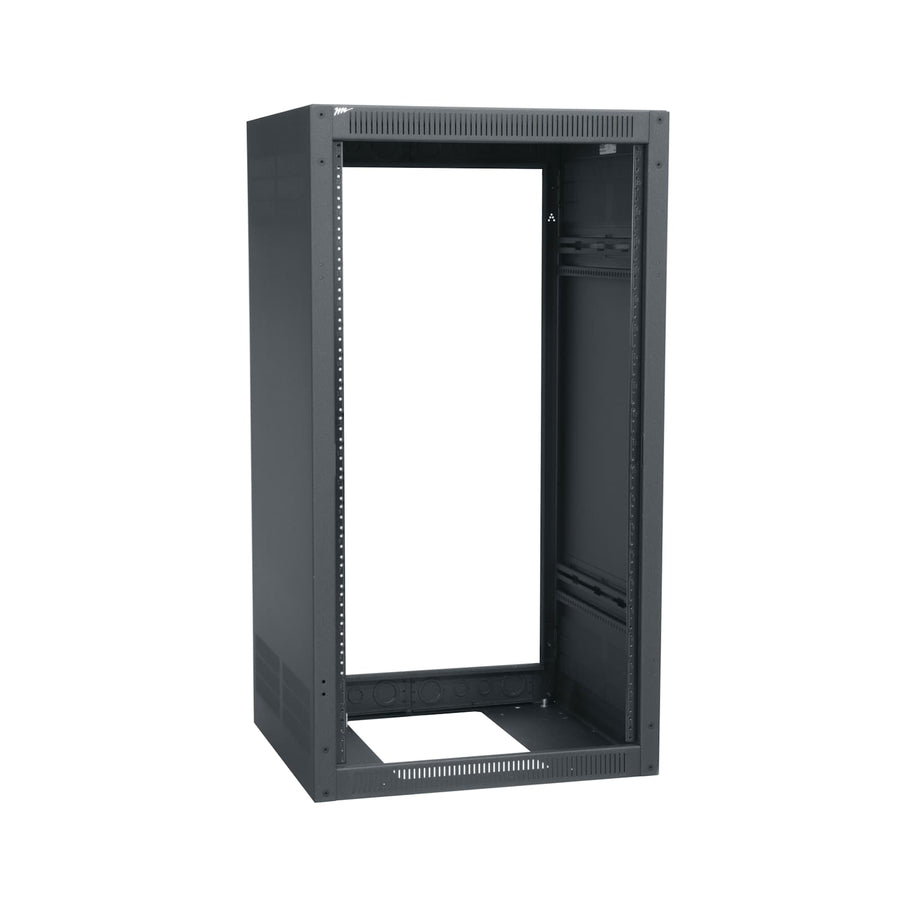

27 RU ERK Series Rack, 28 Inches Deep without Rear Door
27 RU floor standing rack, 28" deep, with solid sides and UL-listed 2,500 lbs capacity
The ERK-2728LRD is a 27 RU standalone steel frame rack designed for professional AV infrastructure. This 28 in (71.1 cm) deep model features a black wrinkle powder coat finish and provides a 26.47 in (67.2 cm) usable depth for equipment mounting. Built with fully welded construction for maximum structural integrity, the rack is UL Listed in the US and Canada with a 2,500 lbs (1,134 kg) load capacity. For installations requiring seismic protection, this unit is seismic rated with a 680 lbs (308.4 kg) capacity when installed with ERK-Z4 brackets. The frame includes top and bottom venting within the solid sides to assist with thermal management. For cable organization, the rack features slotted rackrail brackets and convenient lacing points. The standard front adjustable 10-32 threaded rackrail is numbered for rapid deployment during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28 in (71.1 cm) |
| Height | 51.38 in (130.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 80.1 lbs (36.3 kg) |
| Rack Units | 27 RU |
| Shipping Weight | 112 lbs (50.8 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 26.47 in (67.2 cm) |
All other specifications 15
| Usable Height | 47.38 in (120.4 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | YesYes |
| UPC | 656747213588 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 680 lbs (308.4 kg) |
Resources
Questions about this part
How much weight can I safely load in this rack?
The ERK-2728LRD is UL Listed with a 2,500 lbs (1,134 kg) load capacity for standard use.
Is this rack suitable for seismic environments?
Yes, it is seismic rated with a 680 lbs (308.4 kg) capacity if installed using ERK-Z4 brackets.
What is the actual usable depth for my equipment?
While the total rack depth is 28 in (71.1 cm), the usable depth is 26.47 in (67.2 cm).
Can I install multiple racks together?
Yes, the ERK Series racks can be ganged together to create partitioned multi-bay installations for security and thermal control.
Which document should I use for submittals?
The ERK Series Enclosure A&E Specification Sheet (PDF) is available for technical submittal requirements.
