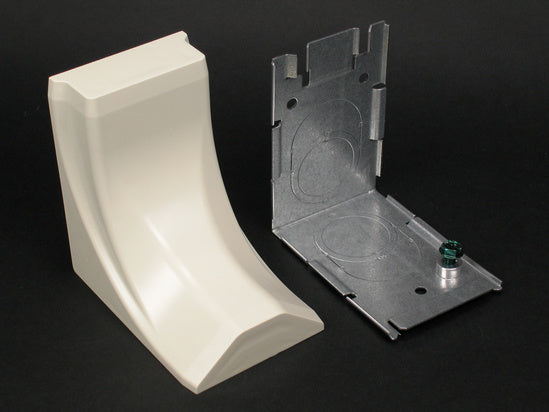

2686FO 2400 Transition Feed Fitting
Transition feed fitting for 2400 Series Raceways, featuring 3/4" and 1" concentric trade size KOs for surface panel box connections
The Wiremold 2686FO is a 2400 Series Transition Feed Fitting designed to simplify the connection between a surface panel box and a 2400 Series Raceway. This fitting eliminates the requirement to offset the raceway when making these connections. It features concentric trade size knockouts for 3/4" and 1" connections. Additionally, a 1" trade size knockout is elongated, allowing for an adjustment range from the surface to the center of the bushing of 1" (25mm) minimum to 1 5/8" (41mm) maximum. For more complex installations, this unit includes twistouts to facilitate a transition to 1500 or 2600 Pancake Raceways. This TAA compliant steel fitting is RoHS compliant and is finished in Ivory.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Ivory |
Resources
Questions about this part
Can I use the 2686FO to connect 2400 Series Raceway to a surface panel box?
Yes, this fitting is specifically designed to eliminate the need to offset 2400 Series Raceway when connecting with surface panel boxes.
What trade sizes are compatible with the knockouts on the 2686FO?
The fitting includes concentric trade size KOs for 3/4" and 1" connections, plus an elongated 1" KO.
How much adjustment is possible for the 1" elongated knockout?
The 1" trade size KO is elongated to allow an adjustment from the surface to the center of the bushing between 1" (25mm) and 1 5/8" (41mm) maximum.
Can this fitting be used with 1500 or 2600 Pancake Raceways?
Yes, the 2686FO includes twistouts that allow for a transition to 1500 and 2600 Pancake Raceways.
Is the 2686FO TAA compliant for government projects?
Yes, this part is listed as TAA Compliant and meets RoHS material restrictions.
