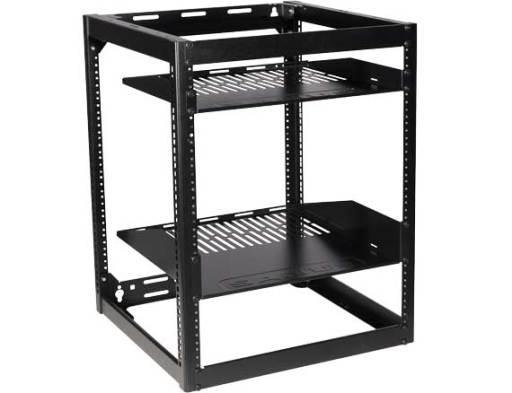

26" Tall AV Rack 15U Stackable Skeleton Rack
15U stackable skeleton rack for freestanding or wall mounting, supporting up to 600 lbs capacity
The Sanus CFR1615-B1 is a 15U stackable skeleton rack designed for modular AV component organization. This rack is part of a system that allows for multiple height combinations; it can be coupled with other units to create total heights of 20U, 30U, 35U, or 40U. When used as a freestanding unit, it has a weight capacity of 600 lbs (272.2 kg), but when mounted directly to a wall, the capacity is rated for 200 lbs. The structure is self-aligning to facilitate assembly in approximately 15 minutes. This series is compatible with the SANUS EcoSystem®. The unit measures 26.25 in (66.7 cm) in height without casters, with a width of 20.41 in (51.8 cm) and a depth of 20 in (50.8 cm). It is a modular solution for both floor and wall applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 20 in (50.8 cm) |
| Package Depth | 20.9 in (53.1 cm) |
| Package Height | 7.5 in (19.1 cm) |
| Package Width | 27.2 in (69.1 cm) |
| Product Height Without Casters | 26.25 in (66.7 cm) |
| Product Weight | 40 lbs (18.1 kg) |
| Rack Units | 15 RU |
| Shipping Dimensions | 27" x 21" x 7.5" (685.8 x 533.4 x 190.5 mm) |
All other specifications 8
| Shipping Weight | 40 lbs (18.1 kg) |
| Weight Capacity | 600 lbs (272.2 kg) |
| Width | 20.41 in (51.8 cm) |
| Application | FreestandingWall |
| Color | Black |
| Installation Items | 1/2" Socket Wrench3/8" Masonry Bit - Concrete Installations7/16" Socket WrenchAwlElectric DrillHammerLevelPencilPhillips Head ScrewdriverStud FinderTape Measure |
| Universal Mounting | No |
| UPC | 793795525499 |
Resources
Questions about this part
How much weight can the CFR1615-B1 support when mounted on a wall?
When mounted directly to a wall, this rack is rated for a weight capacity of 200 lbs.
Can I combine multiple CFR1615-B1 racks to create a taller unit?
Yes, this stackable modular design allows you to couple units into height combinations of 20U, 30U, 35U, or 40U.
What tools are required to install this rack?
Installation requires an electric drill, hammer, level, screwdriver, tape measure, stud finder, awl, and a 3/8" masonry bit for concrete. You will also need a 1/2" and 7/16" socket wrench.
Does this rack include shelves or blanking panels?
The manufacturer highlights include one 1U shelf, one 2U shelf (50 lbs capacity), and one 1U blanking panel (30 lbs capacity).
Which document should I use for submittals or installation?
The CFR1620 Installation Manual is available for assembly guidance, and the CFR1615 Technical Drawing is provided for dimensional submittals.
