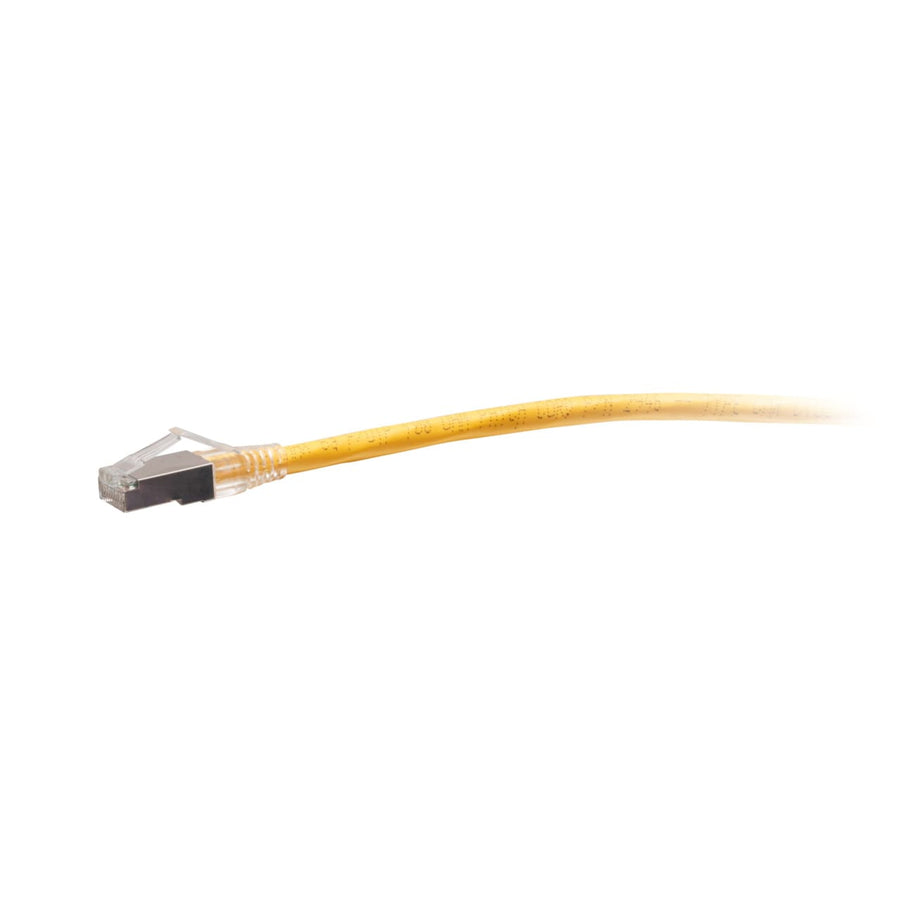

25ft (7.6m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Yellow
25ft TAA-compliant Cat6a shielded (STP) snagless network cable, yellow, for 10GBase-T high-speed connectivity
The C2G43911 is a 25 ft (7.6 m) TAA-compliant Cat6a snagless shielded (STP) network cable in yellow, engineered specifically for high-speed 10GBase-T environments. This passive cable is designed to support bandwidth-intensive applications by reducing impedance and structural return loss (SRL). Utilizing stranded copper conductors with 50-micron gold-plated contacts, it ensures signal integrity for network adapters, hubs, switches, routers, and patch panels. The shielded STP construction, featuring aluminum foil shielding, protects 10 Gigabit Ethernet connections from electromagnetic interference (EMI), RFI, and alien crosstalk. This CMR rated cable is riser rated and constructed with high-quality, made in the USA raw cable for reliable performance. The snagless RJ45 connector design protects the clips from snapping during high insertion cycles, making it a reliable choice for professional installs. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439110 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43911 TAA compliant for government projects?
Yes, the C2G43911 is TAA compliant, making it approved for use in United States government projects and facilities.
What type of shielding does this Cat6a cable use?
This is a Shielded STP cable that uses aluminum foil shielding to counter RFI, EMI, and alien crosstalk in 10 Gigabit networks.
Will this cable work with 10 Gigabit Ethernet equipment?
Yes, this Cat6a cable is designed for 10GBase-T ports and equipment, including switches, routers, and network adapters.
What is the wiring scheme and connector type for the C2G43911?
The cable features RJ-45 male connectors on both ends and follows the T568B wiring scheme.
Does this cable have a warranty?
Yes, this C2G43911 network cable is covered by a lifetime warranty.
