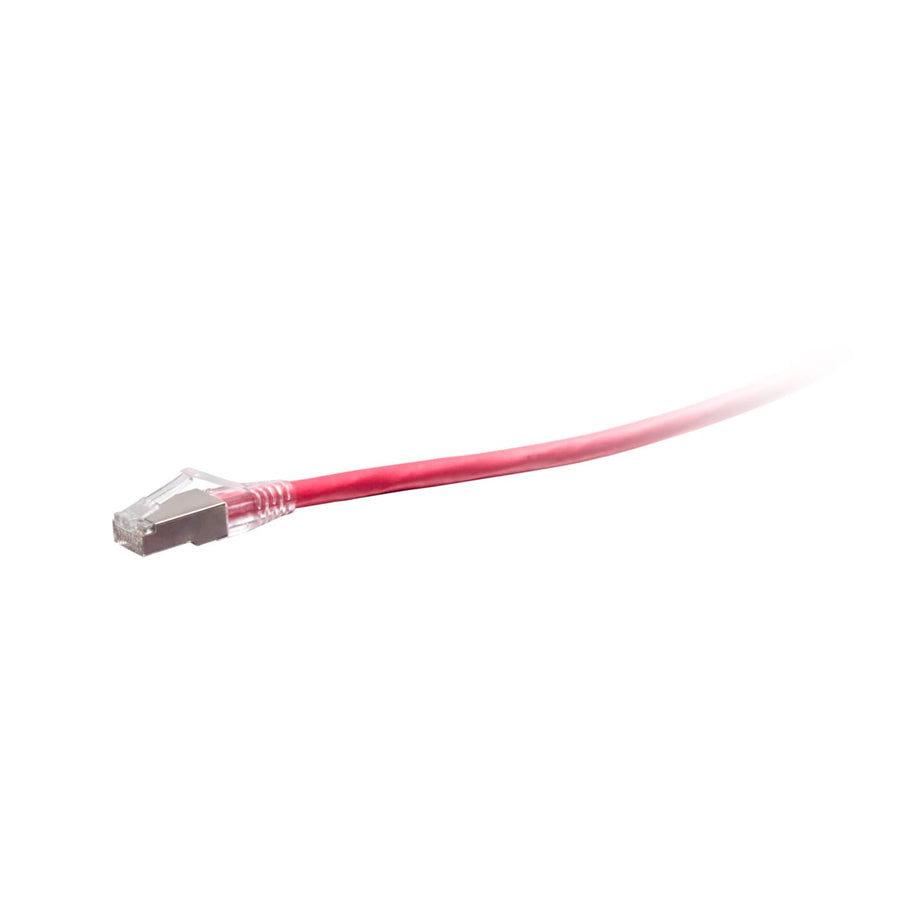

25ft (7.6m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Red
25ft TAA-compliant Cat6a shielded STP patch cable in red, designed for 10GBase-T high-speed network environments
The C2G43890 is a 25 ft (7.6 m) TAA-compliant F-Series Cat6a snagless shielded (STP) network cable in red. This passive patch cable is built for high-speed 10GBase-T equipment, providing reliable connectivity for network adapters, hubs, switches, routers, modems, and patch panels. Designed to protect high-speed 10 Gigabit network connections, it utilizes an aluminum foil shield to counter electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. The cable features 50-micron gold-plated contacts to improve signal integrity and utilizes high-quality, made-in-the-USA copper stranded conductors for consistent performance. This CMR-rated riser cable is constructed with a PVC jacket and measures 0.24 in (6 mm) in diameter. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it suitable for bandwidth-intensive voice, data, and video distribution. The snagless RJ-45 connector design protects the clips from damage during high-frequency insertion cycles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438908 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43890 TAA compliant?
Yes, this C2G43890 cable is TAA compliant and approved for use in United States government projects and facilities.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this cable is designed for 10GBase-T ports and equipment, meeting ANSI/TIA-568.2-D standards for 10 Gigabit Ethernet applications.
What is the shielding type for the C2G43890?
This is a shielded STP (Screened Twisted Pair) cable using an aluminum foil shield to protect against RFI, EMI, and alien crosstalk.
What is the jacket rating for this cable?
The C2G43890 features a CMR-rated riser jacket made of PVC material.
Can I use this cable for high-frequency insertion environments?
Yes, the snagless RJ-45 connector design is specifically engineered to protect the clips from being snapped off during frequent use.
