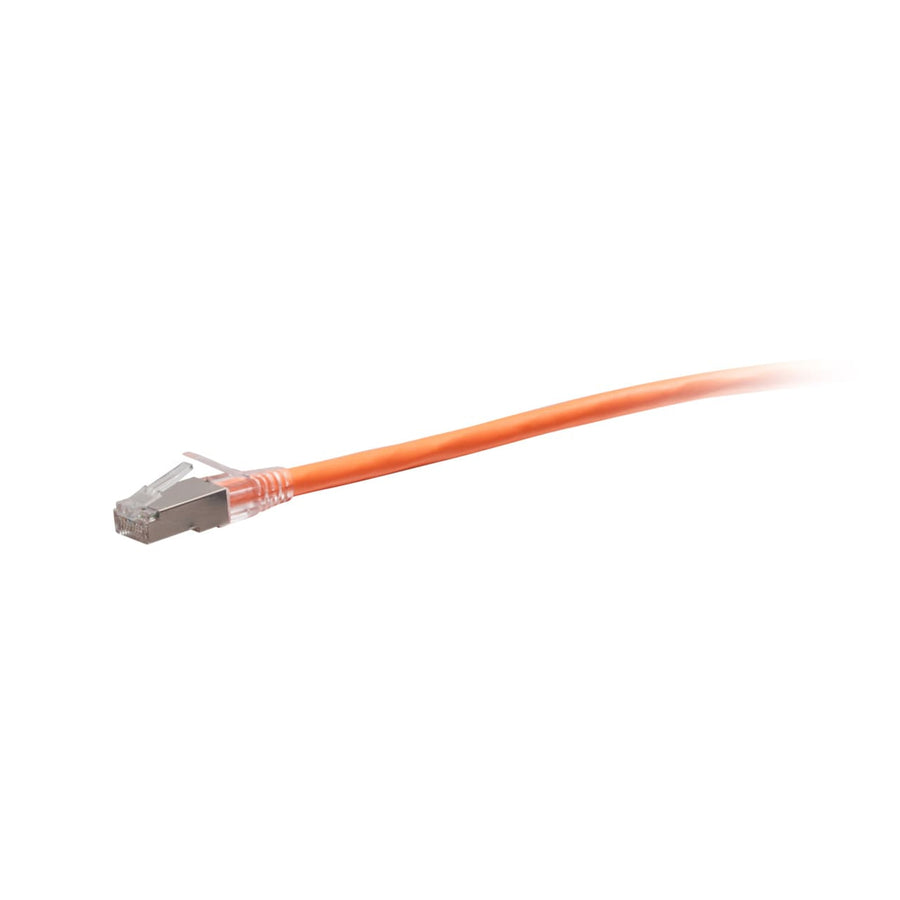

25ft (7.6m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Orange
25ft orange TAA-compliant Cat6a snagless shielded STP cable for high-speed 10GBASE-T network connectivity
The C2G43932 is a 25 ft (7.6 m) TAA-compliant Cat6a snagless shielded (STP) network cable finished in orange. This passive cable is constructed with high-quality, made in the USA stranded copper conductors and an aluminum foil shield designed to counter EMI, RFI, and alien crosstalk. It is ideal for bandwidth-intensive 10GBase-T applications, including connections for network adapters, hubs, switches, routers, and patch panels. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. Each RJ45 male connector features 50-micron gold-plated contacts to improve signal integrity and a snagless design to protect the clips from being snapped off during high insertion cycles. With a 0.24 in (6 mm) cable diameter and CMR rated PVC jacket, this riser-rated cable is suitable for a variety of installation environments. It is TAA compliant, making it approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439325 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43932 TAA compliant for government use?
Yes, this is a TAA-compliant F-Series cable, approved for use in United States government projects and facilities.
Will this Cat6a cable work for 10GbE networking?
Yes, it is designed for 10GBASE-T (10 Gigabit Ethernet) applications, including connections to switches, routers, and network adapters.
What is the difference between the STP shielding and standard cables?
This SKU uses Shielded STP (Shielded Twisted Pair) with an aluminum foil shield to protect against electromagnetic interference (EMI), RFI, and alien crosstalk.
How does the snagless design help with installation?
The snagless RJ45 male connectors feature a protective boot that prevents the clips from being snapped off during frequent insertion and removal cycles.
Does this cable support riser applications?
Yes, this cable is CMR rated, making it suitable for riser application environments.
