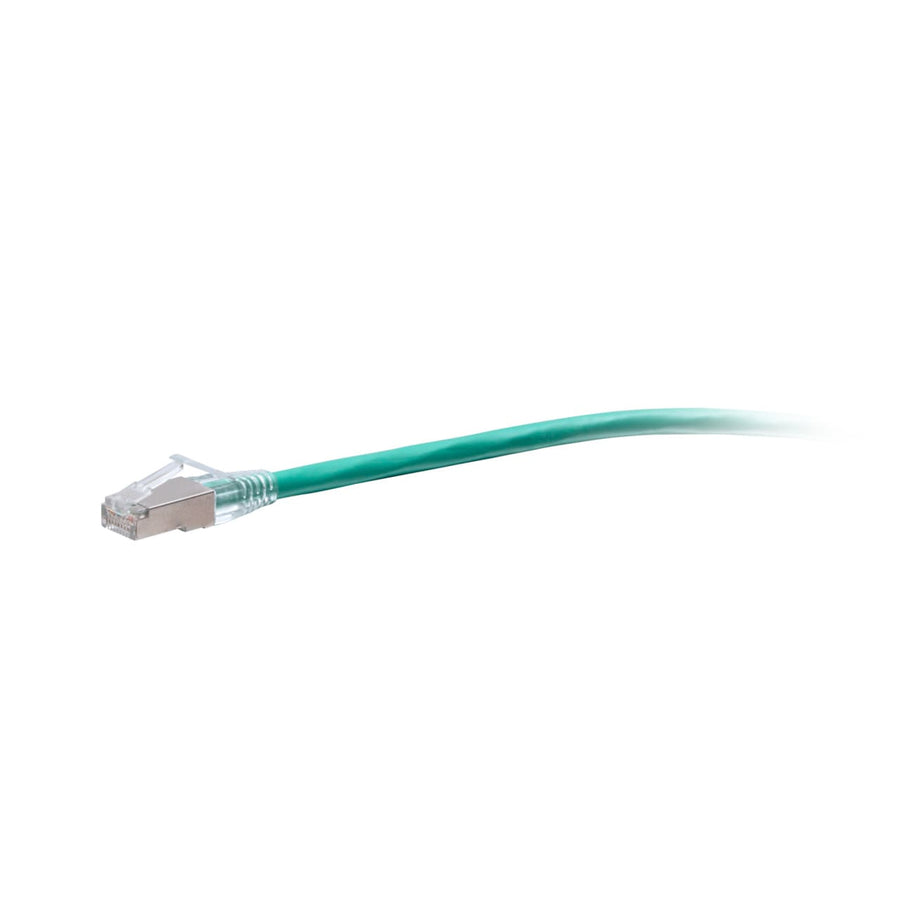

25ft (7.6m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Green
25ft Green Cat6a shielded STP patch cable, TAA-compliant, featuring snagless RJ45 connectors for 10 Gigabit Ethernet applications
The C2G43869 is a 25 ft (7.6 m) TAA-compliant Cat6a shielded (STP) network cable in green, specifically designed for environments requiring compliance with United States government projects and facilities. This passive cable is constructed with high-quality, made in the USA stranded copper conductors and features an aluminum foil shield to protect 10GBASE-T connections from electromagnetic interference (EMI), RFI, and alien crosstalk. The snagless RJ45 connector design protects the clips from damage during high insertion cycles, while 50-micron gold-plated contacts ensure long-term signal integrity for bandwidth-intensive applications. This CMR-rated riser cable is built with a PVC jacket and operates within a temperature range of -4°F to 167°F (-20°C to 75°C). It meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, making it suitable for use with 10GBase-T ports, switches, routers, and patch panels.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438694 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the C2G43869 TAA compliant for government contracts?
Yes, this F-Series cable meets TAA-compliant requirements and is approved for use in United States government projects and facilities.
What is the maximum data rate and application for this cable?
This Cat6a cable is designed for 10GBASE-T (10 Gigabit Ethernet) applications, providing high-speed support for bandwidth-intensive video, voice, and data distribution.
How does the snagless design benefit installers?
The snagless RJ45 connector design protects the locking clips from being snapped off, which is particularly beneficial in environments with high insertion cycles.
What shielding type does this Cat6a cable use?
This is a Shielded STP (Shielded Twisted Pair) cable that utilizes an aluminum foil shield to protect against RFI, EMI, and alien crosstalk.
Does this cable support riser installations?
Yes, this cable has a CMR-rated jacket, making it suitable for riser applications.
