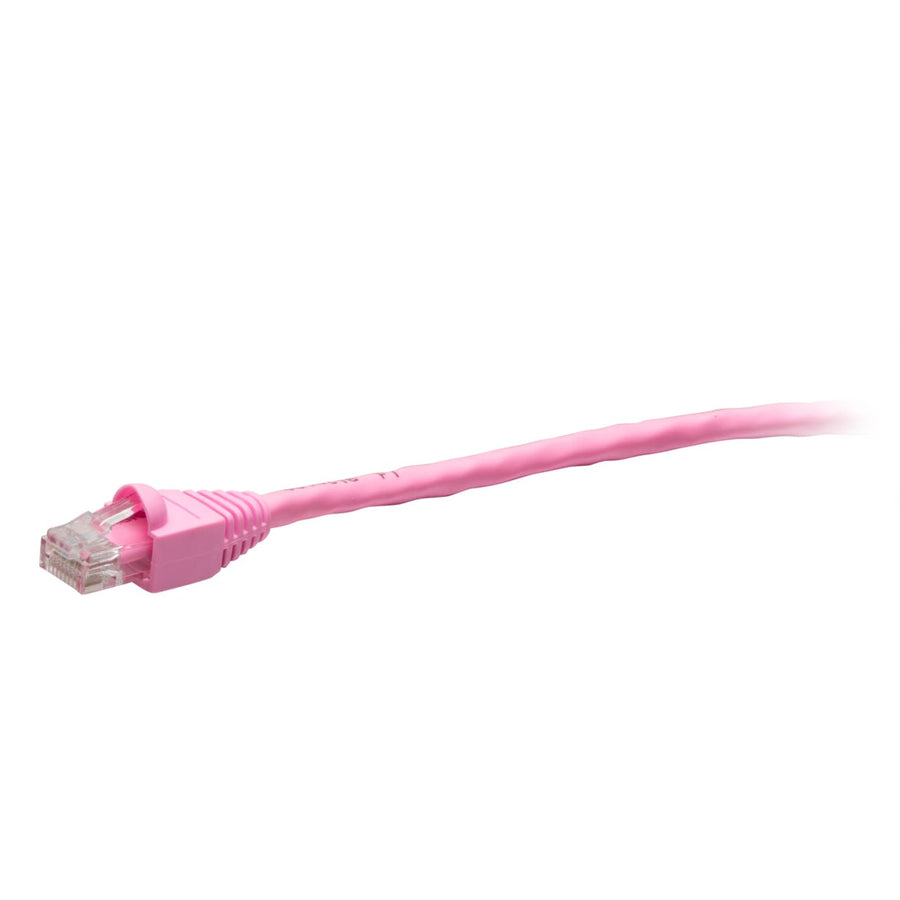

25ft (7.6m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Pink
25 ft pink Cat6 snagless UTP network cable, TAA-compliant, with RJ-45 male connectors
The C2G43605 is a 25 ft (7.6 m) TAA-compliant Cat6 snagless unshielded (UTP) network cable in pink. This passive cable is built with high-quality, made-in-the-USA stranded copper conductors, providing a 600 MHz maximum frequency to ensure reliable performance for 1000BASE-T (1 Gigabit Ethernet) applications. The unshielded twisted pair (UTP) construction and 24 AWG wire gauge meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. Designed for high-cycle environments, the snagless RJ-45 male connectors feature a molded boot that protects the clips from snapping and provides additional strain relief during installation. This CMR-rated riser cable features a PVC jacket and 50-micron gold-plated contacts to maintain signal integrity. Because this SKU is TAA-compliant, it is approved for use in United States government projects and facilities. This 0.22 in (5.5 mm) diameter pink cable is part of the F-Series and is suitable for connecting network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.5 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.57 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436058 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43605 TAA compliant for government contracts?
Yes, this C2G43605 cable is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum frequency and data rate of this Cat6 cable?
This cable supports a 600 MHz maximum frequency, making it capable of 1000BASE-T (1 Gigabit Ethernet) applications.
Will the connector clips break during installation?
The snagless RJ-45 design features a molded boot that protects the clips from being snapped off, which is beneficial for high-insertion cycle environments.
What type of installation environment is this cable rated for?
This is a CMR-rated riser cable with a PVC jacket, suitable for use in indoor riser applications.
Can I use this for a submittal regarding compliance?
Yes, you can refer to the TAA Compliant F-Series Cat6 Snagless Unshielded Network Cable PDF for specific compliance details.
