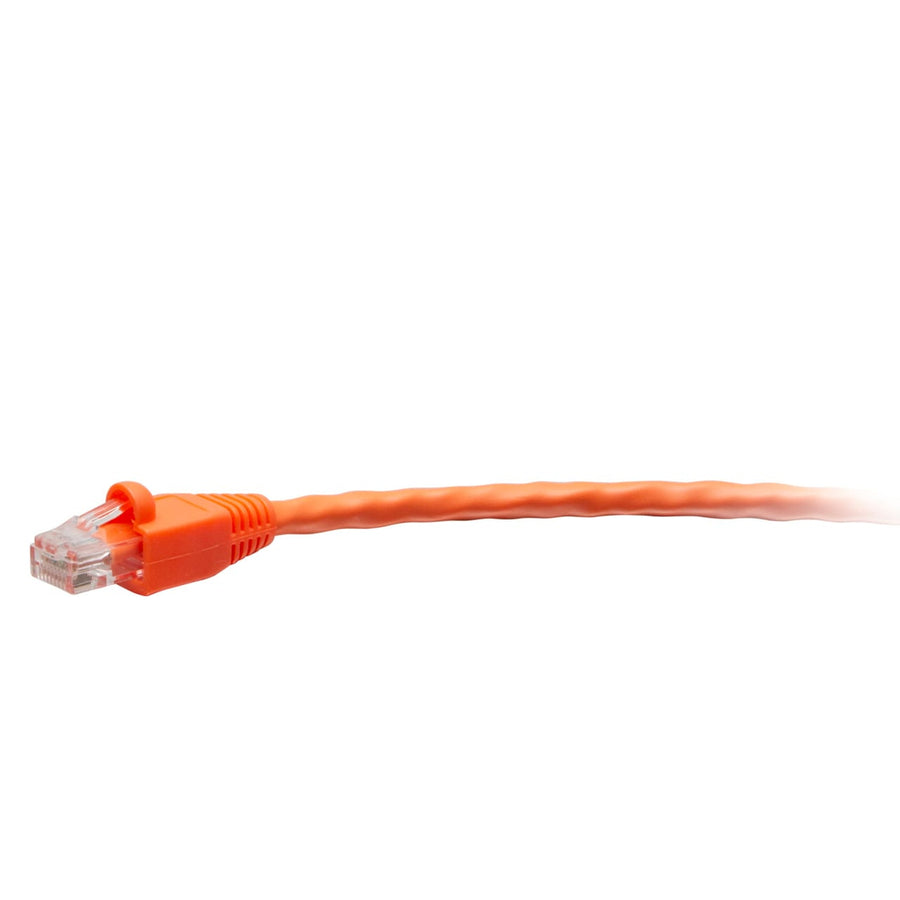

25ft (7.6m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Orange
25 ft (7.6 m) orange Cat6 snagless UTP network cable, TAA-compliant, CMR rated for riser applications
The C2G43542 is a 25 ft (7.6 m) TAA-compliant F-Series Cat6 network cable in orange, specifically engineered to meet the requirements of United States government projects and facilities. This unshielded (UTP) cable utilizes high-quality, made in the USA copper conductors with a 24 AWG wire gauge and stranded construction to ensure reliable performance. It supports 1000BASE-T (1 Gigabit Ethernet) applications and meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The cable features 50-micron gold-plated contacts to maintain signal integrity across its 600 MHz maximum frequency. For ease of installation and durability, the snagless RJ-45 male connectors include a molded boot that provides strain relief and prevents the clips from snapping during high-cycle insertion. This CMR-rated cable with a PVC jacket is designed for riser applications and operates in temperatures ranging from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.57 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435426 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
