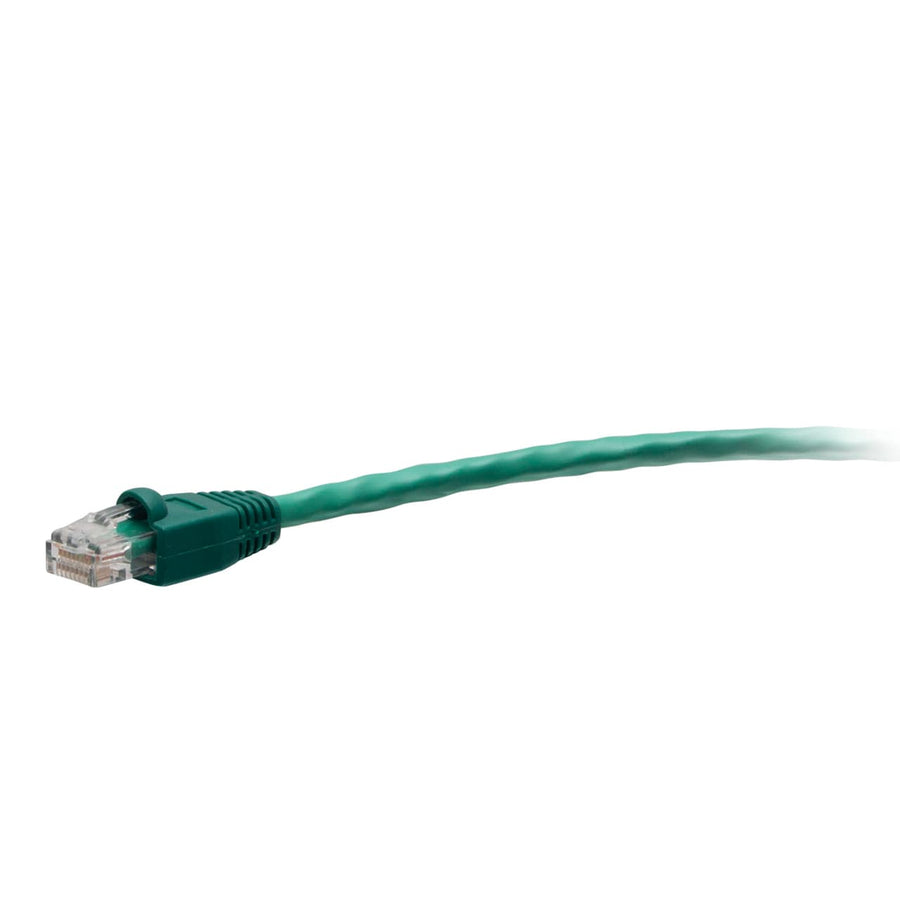

25ft (7.6m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Green
25ft (7.6m) TAA-compliant Cat6 UTP cable in green with snagless RJ-45 connectors
The C2G43500 is a 25 ft (7.6 m) TAA-compliant Cat6 Unshielded Twisted Pair (UTP) network cable designed for high-performance connectivity in sensitive environments. This green cable meets stringent TAA requirements, making it approved for use in United States government projects and facilities. It is constructed with high-quality, made in the USA raw copper cabling, providing an enhanced 600 MHz maximum frequency to ensure reliable 1000BASE-T Gigabit Ethernet performance. The cable features 24 AWG stranded copper conductors and is jacketed in CMR-rated PVC for riser applications. For ease of installation and longevity, the molded snagless boots protect the RJ-45 clips from damage during frequent insertion cycles and provide additional strain relief. This passive cable is wired according to the T568B scheme and features 50-micron gold-plated contacts to maintain signal integrity for hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.57 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435006 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43500 TAA compliant?
Yes, this C2G43500 cable is TAA compliant and meets the necessary requirements for use in United States government projects and facilities.
What is the maximum frequency and performance rating for this Cat6 cable?
This cable provides an enhanced 600 MHz maximum frequency, supporting applications up to 1000BASE-T (1 Gigabit Ethernet) per ANSI/TIA-568.2-D standards.
Will the snagless design prevent damage during installation?
Yes, the molded snagless boot protects the RJ-45 clips from being snapped off, making it suitable for applications involving high insertion cycles.
Can this cable be used in riser applications?
Yes, the cable features a CMR-rated PVC jacket specifically designed for riser applications.
What is the wire gauge and conductor type for the C2G43500?
This cable utilizes 24 AWG stranded copper conductors to provide consistent and reliable performance.
