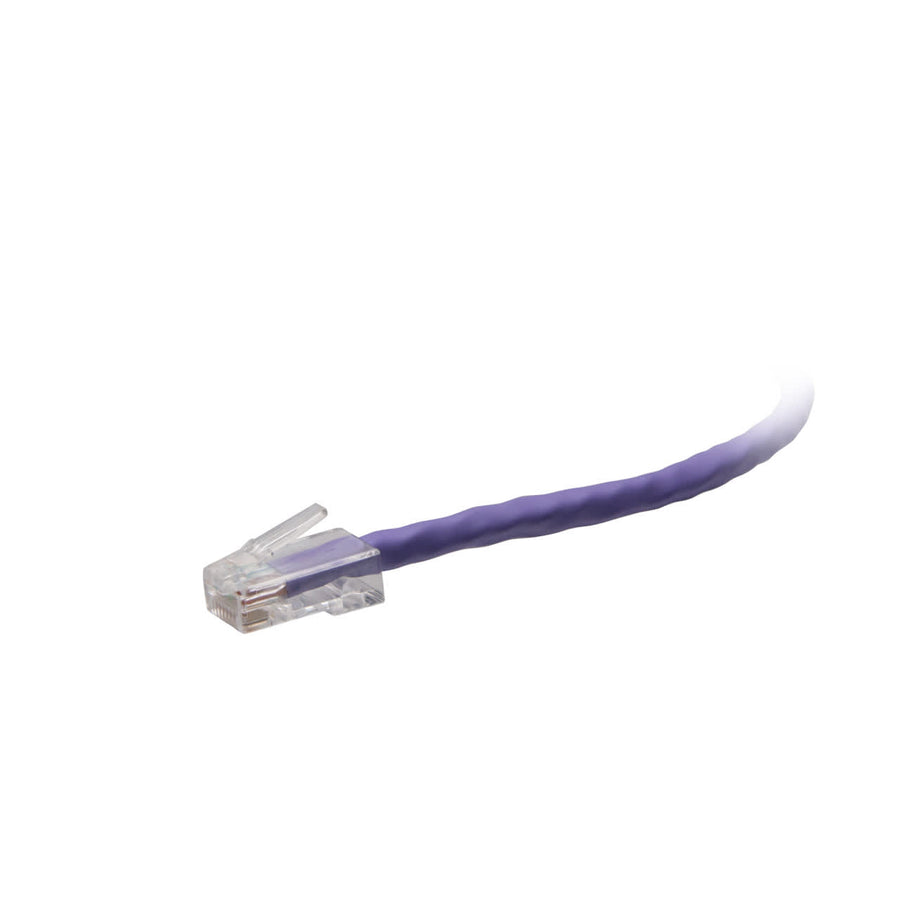

25ft (7.6m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Purple
25ft purple Cat6 UTP network cable, TAA-compliant, CMR rated, and constructed with US-made copper for reliable 1000BASE-T performance
The C2G43682 is a 25ft (7.6m) TAA-compliant Cat6 unshielded twisted pair (UTP) network cable in purple. This non-booted cable is built for professional environments requiring high-speed data transfer, supporting 1000BASE-T (1 Gigabit Ethernet) applications. It features a CMR (Riser) jacket rating and is constructed with high-quality, made in the USA copper conductor stranding for consistent, reliable performance. Each cable utilizes 50-micron gold-plated contacts on the RJ-45 male connectors to maintain signal integrity. The wiring follows the T568B scheme and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. With an enhanced 600 MHz maximum frequency, this cable is designed for use with network adapters, hubs, switches, and routers. This product is TAA compliant, making it suitable for United States government projects and facilities. The cable has a diameter of 0.22 in (5.6 mm) and operates in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.57 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436829 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
