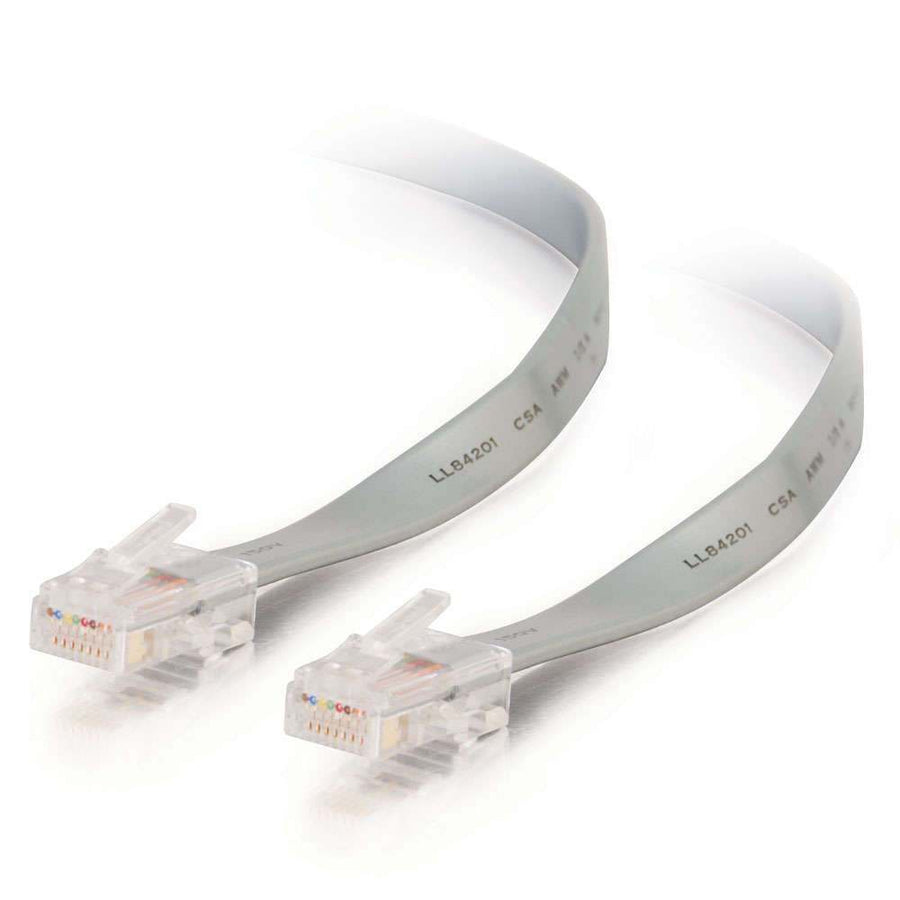

25ft (7.6m) RJ45 8P8C Crossed/Rollover Modular Cable
25 ft (7.6 m) crossover and rollover cable with RJ45 8P8C connectors and 26 AWG silver satin wire
The C2G CG02980 is a 25 ft (7.6 m) modular cable designed for specific networking and communication tasks. This crossover/rollover cable is constructed using heavy-duty 26 AWG silver satin wire to ensure reliable performance. It is primarily utilized for modem and telephone communication applications, as well as for configuring routers where a rollover pinout is required. The cable features gold-plated RJ45 8P8C male connectors on both ends to facilitate clear, consistent communication. The construction includes a PVC jacket and polypropylene insulation, supporting an operating temperature range from -4°F (-20°C) to 176°F (80°C). This gray cable follows a specific pinout diagram where pins are reversed (1-8, 2-7, 3-6, 4-5, 5-4, 6-3, 7-2, 8-1) to enable direct device-to-device connection. This SKU is part of a series that also includes a 7 ft version.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.49 lbs (0.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 26 |
| Cable Type | CrossoverModem |
| Color | Gray |
All other specifications 10
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Insulation Material | PP (Polypropylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120029809 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the purpose of the CG02980 crossover cable?
The CG02980 is used for modem and telephone communication, and is specifically designed for router configuration using a rollover pinout.
What is the pinout configuration for this cable?
This cable uses a rollover pinout where the wire order is 1-8, 2-7, 3-6, 4-5, 5-4, 6-3, 7-2, and 8-1.
What are the temperature requirements for using this cable?
This cable is rated for an operating temperature range of -4°F (-20°C) up to 176°F (80°C).
What is the gauge of the wire used in this C2G cable?
This 25 ft cable uses 26 AWG silver satin wire and features gold-plated RJ45 8P8C connectors.
Is there a shorter version of this rollover cable available?
Yes, this product is part of a series that includes a 7 ft version in addition to this 25 ft model.
