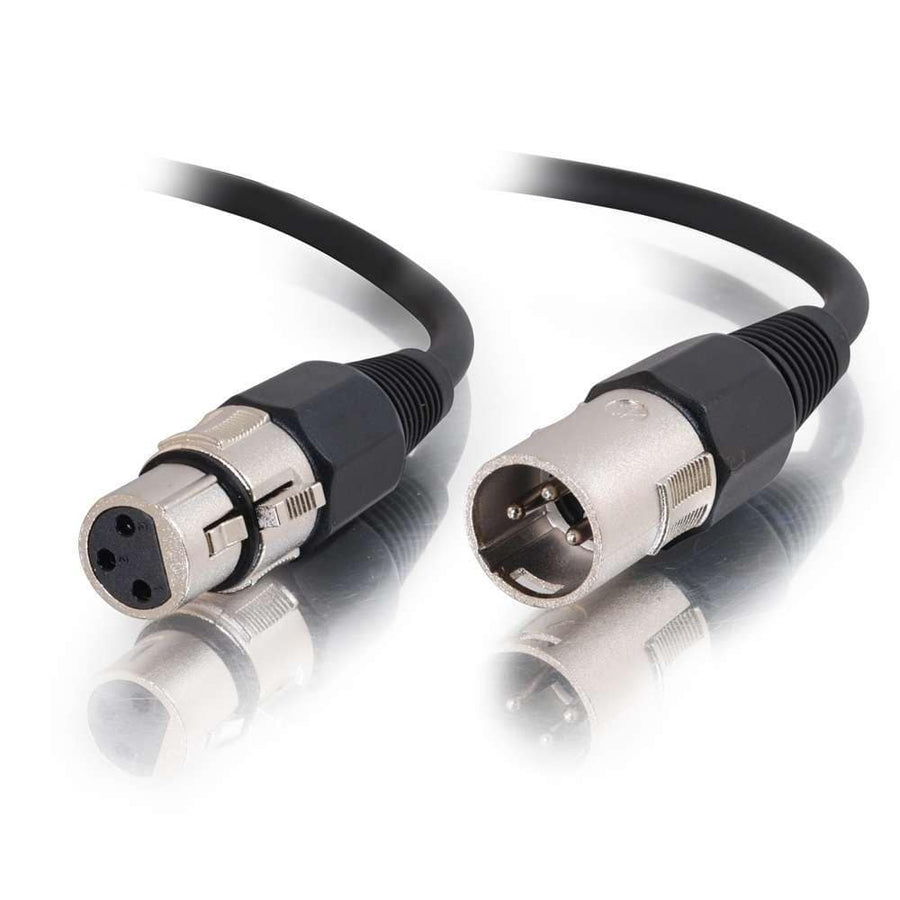

25ft (7.6m) Pro-Audio XLR Male to XLR Female Cable
25ft pro-audio XLR male to XLR female cable with 22 AWG conductors and dual shielding for maximum noise protection
The C2G CG40061 is a professional-grade XLR to XLR cable designed to connect unbalanced sources to balanced XLR inputs. This 25 ft (7.6 m) audio cable utilizes 22 AWG twisted pair conductors to maintain signal integrity. To protect against electromagnetic interference and noise, the construction includes an aluminum foil shield paired with a 60% copper braid. The cable is encased in a highly flexible 0.24 in (6 mm) PVC jacket, which is engineered to reduce the risk of kinking or damaging the internal conductors during installation or frequent movement. For durability in live environments, the solid brass connectors feature bright nickel plating to resist wear during repeated reconfiguration of equipment. Additionally, the cable includes a chuck strain relief inside the XLR and spring strain relief to protect the integrity of the solder joints and contacts over time. This cable is rated for operating temperatures ranging from -4°F to 176°F (-20°C to 80°C).
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.99 lbs (0.5 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 12
| Wire Gauge | 22 |
| Cable Type | AudioXLR |
| Color | Black |
| Connector 1 | (1) XLR 3-pin Male(1) XLR 3-pin Male |
| Connector 2 | (1) XLR 3-pin Female(1) XLR 3-pin Female |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120400615 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Will the CG40061 work for connecting unbalanced sources to balanced inputs?
Yes, this XLR to XLR cable is specifically designed to connect unbalanced sources to balanced XLR inputs for pro-audio applications.
What is the shielding type for the C2G CG40061 cable?
This cable features a dual-layer shielding system consisting of an aluminum foil shield and a 60% copper braid to maximize noise protection.
What is the conductor gauge and cable diameter for this XLR cable?
The CG40061 uses 22 AWG twisted pair conductors within a 0.24 in (6 mm) PVC jacket.
Is the CG40061 suitable for mobile audio applications?
Yes, the nickel-plated solid brass connectors and flexible PVC jacket are designed to withstand the wear and movement of frequent equipment reconfiguration.
What are the operating temperature limits for this cable?
This cable is rated for operation in temperatures ranging from -4°F to 176°F (-20°C to 80°C).
