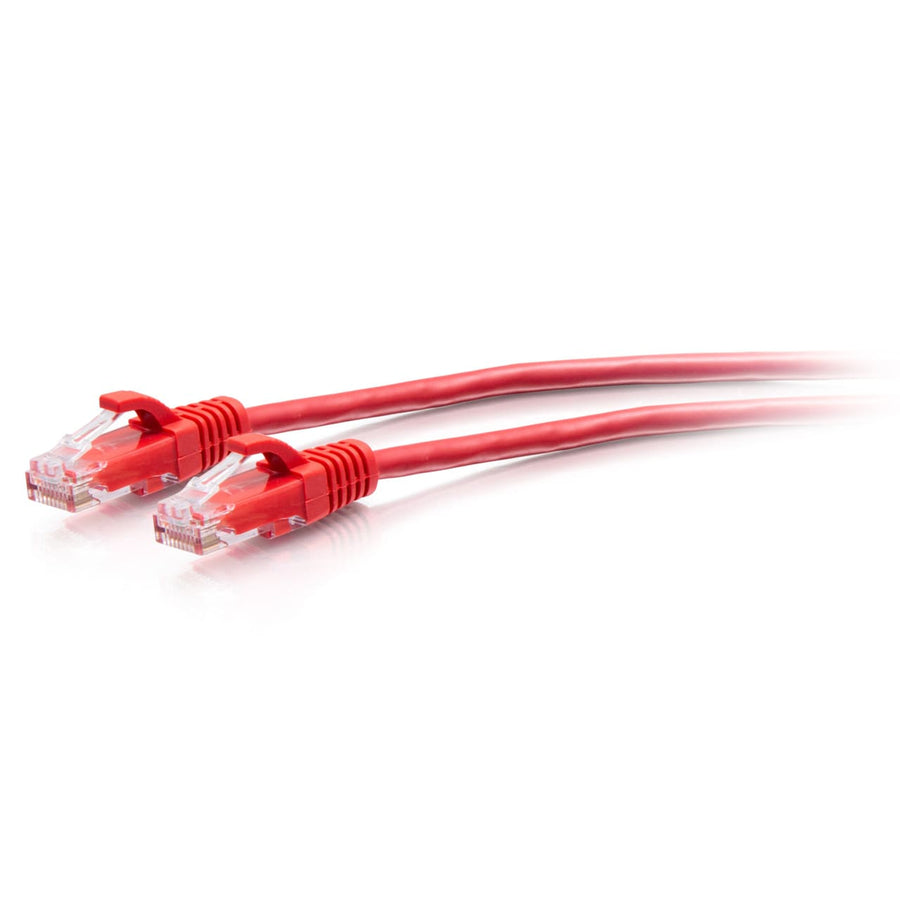

25ft (7.6m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Red
25ft Red Cat6a UTP slim patch cable with 28AWG conductors for high-density network installations
The C2G30166 is a 25ft (7.6m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in Red. This cable is engineered for high-density cabling applications, such as large conference rooms or data centers, where space is limited. It features 28AWG stranded copper conductors, which significantly reduce the cable diameter to 0.19 in (4.8 mm) ± 0.15mm (0.01 in). This slim profile increases airflow in tight spaces compared to standard Cat6 cables and provides the flexibility needed for cramped installations. Each cable features RJ-45 male connectors with gold-plated contacts and a molded, snagless PVC boot to provide strain relief and prevent accidental snags during installation. This Cat6a cable supports data transfer rates up to 10 GBPS and is suitable for Power over Ethernet (PoE) and VoIP applications. The construction meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements, and the product is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 1.05 lbs (0.5 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301660 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
20 Inch Enclosure with Hinged Door
EN2050$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
42 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP4250NA$189.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
Questions about this part
What is the maximum data speed for the C2G30166?
The C2G30166 supports data transfer rates up to 10 GBPS, meeting Cat6a performance standards.
Is the C2G30166 suitable for high-density racks?
Yes, its 28AWG slim profile results in a 0.19 in (4.8 mm) diameter, which allows for increased airflow and more flexibility in tight spaces.
Will this cable work for PoE applications?
This Cat6a cable is designed to support Power over Ethernet (PoE) and VoIP environments.
What is the exact length of this patch cable?
The C2G30166 has a cable length of 25 ft (7.6 m).
Which document provides technical details for this series?
Full technical details can be found in the Cat6a Slim Patch Cable Series Datasheet (PDF).
