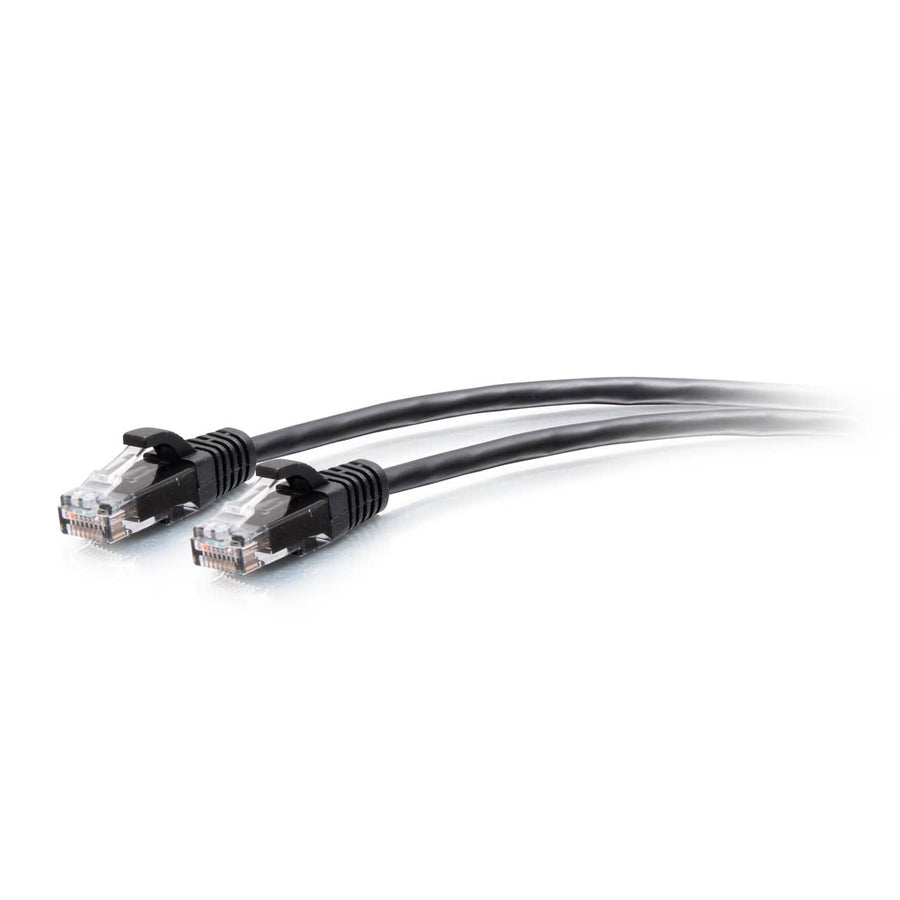

25ft (7.6m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Black
25ft Cat6a slim patch cable with 28AWG stranded copper conductors and snagless boots for high-density networking
The C2G30152 is a 25ft (7.6m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed specifically for high-density cabling environments like datacenters and large conference rooms. Built with 28AWG stranded copper conductors, this slim cable has a 0.19 in (4.8 mm) diameter, which allows for increased airflow and greater flexibility in tight spaces compared to standard Cat6 cables. This slim profile is particularly useful in applications where space is at a premium or where cable congestion must be minimized. The cable supports data transfer rates up to 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. Each RJ-45 male connector features gold-plated contacts and a molded, snagless PVC boot to provide strain relief and prevent snags during installation. This unshielded UTP cable is suitable for Power over Ethernet (PoE) and VoIP deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 1.05 lbs (0.5 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301523 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
Is the C2G30152 suitable for high-density patch panels?
Yes, the 28AWG slim construction and 0.19 in (4.8 mm) diameter are designed for high-density applications like datacenters where airflow and space are critical.
What is the data speed and category rating of this cable?
This is a Cat6a patch cable that supports data transfer rates up to 10 GBPS.
Does this cable support Power over Ethernet (PoE)?
Yes, the Cat6a technology used in this cable makes it suitable for Power over Ethernet (PoE) and VoIP situations.
What is the difference between this and standard Cat6 cables?
This cable uses 28AWG conductors to achieve a smaller diameter, which increases airflow in tight spaces and provides more flexibility than standard Cat6.
Which documents are available for technical submittals?
You can access the Cat6a Slim Patch Cable Series Datasheet and the C2G Ethernet Patch Cable Matrix via the provided PDF links.
