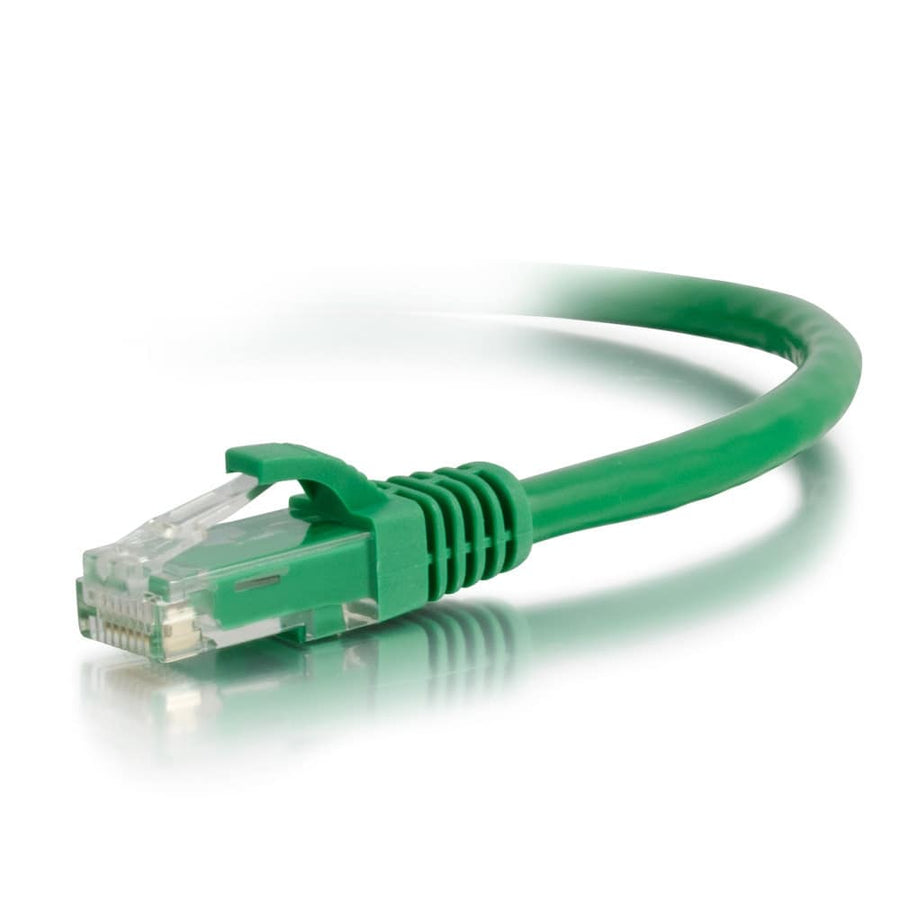

25ft (7.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Green
25ft green Cat6a snagless UTP patch cable, 26AWG stranded copper, tested to ANSI/TIA 568 C.2 for 10 Gigabit data transmission
The C2G CG50793 is a 25 ft (7.6 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in green, designed to support 10GBase-T equipment. This cable facilitates 10 Gigabit data transmission over a 4 pair copper conductor, allowing for connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien cross talk performance compared to standard Cat6 cabling systems. The construction features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. Each cable is equipped with two RJ-45 Male connectors featuring PVC snagless hoods, which are specifically designed to prevent snags in high-density switch applications. The cable diameter is 0.24 in (6 mm), and the wiring scheme follows the 568B standard. This green patch cable is rated for temperatures up to 75°C and includes an individual length label on each unit for easy identification in organized network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.65 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507932 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this Cat6a cable support 10 Gigabit speeds?
Yes, this cable is designed for 10GBase-T ports and enables 10 Gigabit data transmission over 100 meters via a 4 pair copper cable.
Is this patch cable suitable for high-density switches?
Yes, the snagless hood design on the RJ-45 Male connectors is specifically intended to protect the cable in high-density switch applications.
What is the wiring scheme for the CG50793?
This C2G patch cable utilizes the 568B wiring scheme and features 26AWG stranded copper conductors.
How do I identify the length of the cable in a large installation?
Each individual cable features a length label, making it easy to distinguish this 25 ft (7.6 m) cable from others in a rack.
What certifications does this cable meet?
The cable is ANSI/TIA 568 C.2 Cat6a channel tested and carries CE, REACH, and RoHS certifications.
