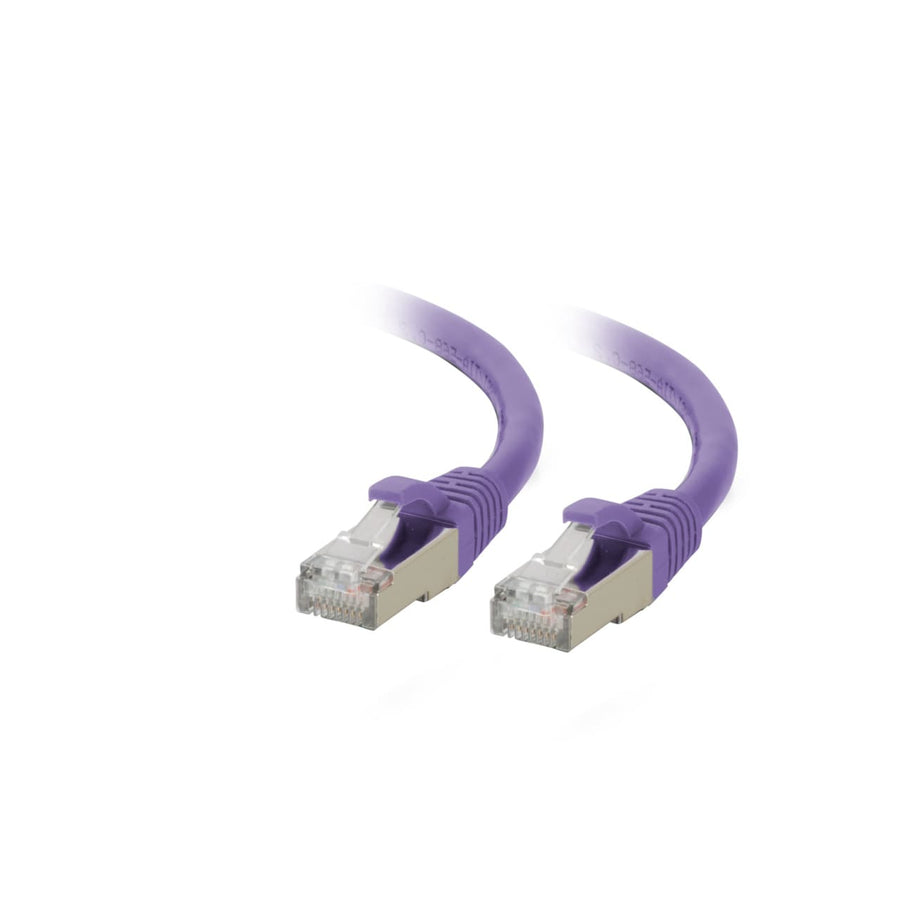

25ft (7.6m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Purple
Purple Cat6a STP patch cable, 25 ft (7.6 m) length, shielded for 10Gbps high-speed network protection
The C2G07403 is a 25 ft (7.6 m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable in Purple, designed to support high-bandwidth 10 Gigabit applications. This cable is engineered for use with 10GBase-T equipment, including network adapters, switches, routers, hubs, and patch panels. The shielded twisted pair (STP) construction protects high-speed network connections from electromagnetic interference and noise. Each individual pair is bonded together to maintain twist-spacing through the termination point, which minimizes Near-End Crosstalk (NEXT) levels. The cable features 26 AWG stranded copper conductors and is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements. For high-density environments, the snagless connector design protects the RJ-45 lock and eases cable management. The cable diameter is 0.24 in (6.2 mm) with a bend radius of 1.95 in (49.6 mm). This Cat6a patch cable is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120074038 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
What is the maximum data transfer rate for the C2G07403?
Yes, this Cat6a cable supports data transfer rates of 10 GBPS for high-speed network performance.
What equipment is compatible with this purple Cat6a cable?
The C2G07403 is designed for use with network adapters, hubs, switches, routers, and HDBaseT applications.
Does the snagless design protect the connectors?
Yes, the snagless connector type is specifically designed to protect the RJ-45 connector's lock in high-density environments.
What is the operating temperature range for this STP cable?
This cable is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
What standards does this patch cable meet?
This cable is fully tested to meet the ANSI/TIA 568-C.2 Cat6a requirements.
