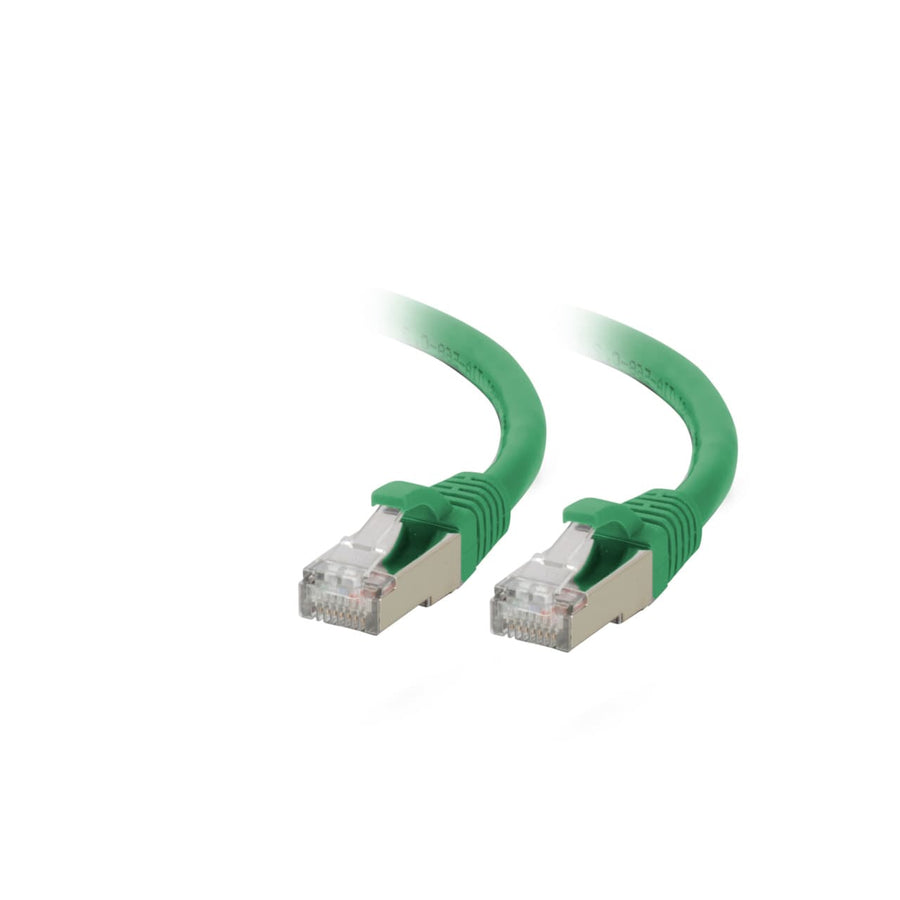

25ft (7.6m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Green
25ft Green Cat6A shielded STP patch cable supporting 10Gbps data transfer for high-speed networking
The C2G07361 is a 25 ft (7.6 m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable in green, designed to support 10Gbps data transfer rates. This shielded twisted pair (STP) cable is engineered to protect high-speed 10 Gigabit network connections from electromagnetic interference and noise. It is ideal for use with 10GBase-T ports and hardware such as switches, routers, hubs, network adapters, and patch panels. This cable meets ANSI/TIA 568-C.2 requirements, ensuring performance for bandwidth-intensive applications. The design utilizes stranded copper conductors and 50 µ in gold plating on the RJ-45 male connectors. To minimize Near-End Crosstalk (NEXT) and reduce impedance or structural return loss (SRL), each individual pair is bonded together to maintain consistent twist-spacing through the termination point. The snagless connector design protects the RJ-45 lock in high-density environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073611 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
Will the C2G07361 work with my 10GbE switch or router?
Yes, this Cat6a cable is designed for 10GBase-T ports and supports 10Gbps transmission for devices like switches, routers, and hubs.
What is the maximum data transfer rate for this Cat6a cable?
The C2G07361 supports data transfer rates of 10 GBPS, making it suitable for high-bandwidth network applications.
Is this cable suitable for high-density patch panels?
Yes, the snagless connector design is specifically intended to protect the RJ-45 lock when used in high-density environments.
What is the exact length and color of this cable?
This specific SKU is 25 ft (7.6 m) in length and features a green PVC jacket for easy identification.
Does this cable provide protection against interference?
Yes, the shielded STP (Shielded Twisted Pair) construction is designed to protect your network connection from noise and electromagnetic interference.
