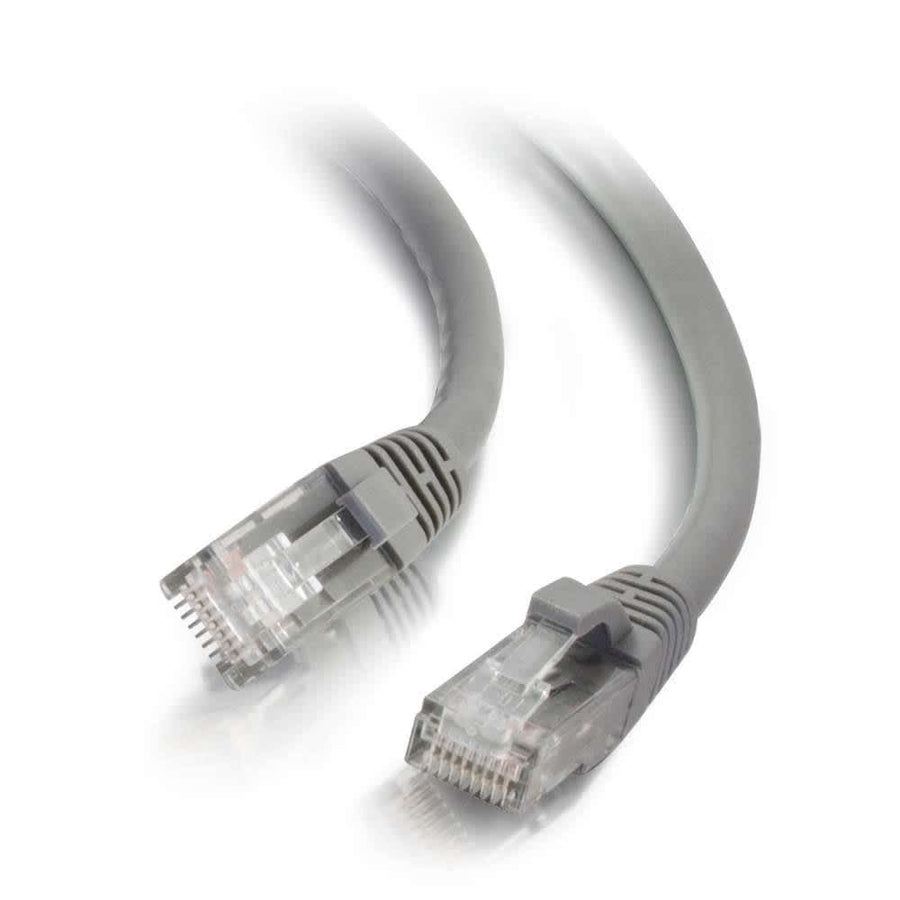

25ft (7.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack - 25 Pack - Gray
25-pack of 25 ft Cat6 snagless UTP Ethernet patch cables in gray with stranded copper conductors
The C2G CG29047 is a 25-pack of Cat6 Unshielded UTP Ethernet network patch cables designed for bandwidth-intensive voice, data, or video distribution in Gigabit computer networks. Each 25 ft (7.6 m) cable features a T568B wiring scheme and is constructed with stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. The snagless, booted RJ-45 male connectors include a PVC hood material to provide extra strain relief and prevent snags during installation. These cables maintain twist-spacing throughout the line to reduce impedance and structural return loss (SRL). Operating within a temperature range of -4°F to 176°F (-20°C to 80°C), these cables are built for reliable performance in diverse environments. This multipack is ideal for large-scale deployments where color-coding with gray cabling helps maintain organized network infrastructure.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 0.9 in (22.8 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Package Count | 25 |
| Shield Type | UTP |
| Shipping Weight | 17.27 lbs (7.8 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 19
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120290476 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is included in the CG29047 multipack?
This SKU is a 25-count multipack containing 25 individual 25 ft (7.6 m) Cat6 patch cables.
What is the wiring scheme for these Cat6 cables?
The C2G CG29047 cables utilize the T568B wiring scheme.
Will these cables work for high-bandwidth video applications?
Yes, these Cat6 cables are designed for bandwidth-intensive voice, data, or video distribution in Gigabit networks.
What is the bend radius for this patch cable?
The minimum bend radius for the CG29047 is 0.9 in (22.8 mm).
Are these cables shielded or unshielded?
These are Unshielded UTP (UTP) cables with a PVC jacket and PVC connector hoods.
