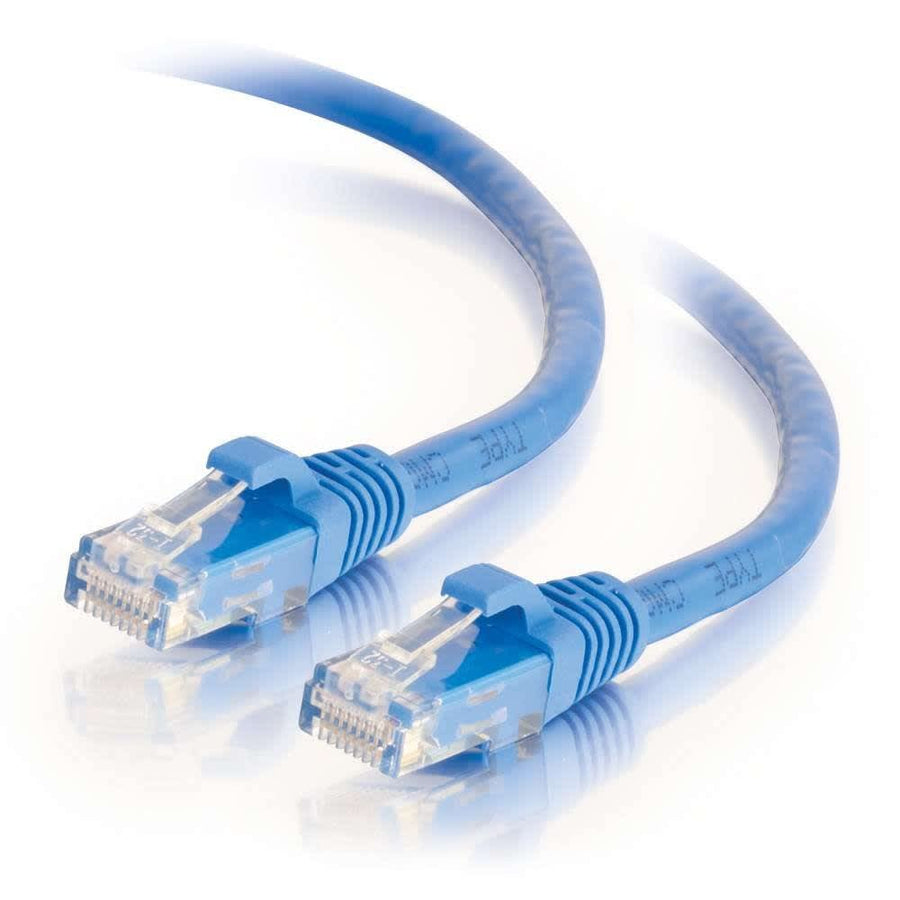

25ft (7.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack - 25 Pack - Blue
25-pack of 25ft blue Cat6 UTP snagless patch cables with stranded copper conductors and RJ-45 male connectors
The C2G CG29022 is a 25-pack of blue Cat6 unshielded UTP patch cables designed for high-bandwidth Ethernet, voice, data, or video distribution in gigabit computer networks. Each cable is 25 ft (7.6 m) long and features 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. These cables utilize a T568B wiring scheme and are built with PVC jacket and hood materials. The snagless, booted design provides extra strain relief and prevents accidental snags during installation. With a bend radius of 0.9 in (22.8 mm) and a cable diameter of 0.24 in (6.2 mm), these cables are suitable for tight cable management environments. These unshielded cables are rated for operating temperatures ranging from -4° to 176°F (-20° to 80°C). This multipack contains 25 individual cables, each terminating in an RJ-45 male connector.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 0.9 in (22.8 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Package Count | 25 |
| Shield Type | UTP |
| Shipping Weight | 17.73 lbs (8 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 19
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120290223 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring scheme for the C2G CG29022 cables?
These Cat6 patch cables use a T568B wiring scheme. Each cable is 25 ft (7.6 m) long and features an RJ-45 male connector on both ends.
How many cables are included in this C2G CG29022 multipack?
This multipack contains 25 individual blue Cat6 patch cables. Each cable is 25 ft (7.6 m) in length.
What is the bend radius for the CG29022 cables?
The minimum bend radius for these cables is 0.9 in (22.8 mm), which helps accommodate routing in dense network environments.
What is the conductor material used in these cables?
The CG29022 uses stranded copper conductors with a 24 AWG wire gauge to support high-bandwidth data and video distribution.
Are these cables shielded or unshielded?
These are Unshielded Twisted Pair (UTP) cables. They are designed to meet Cat6 TIA/EIA standards while reducing impedance and structural return loss.
