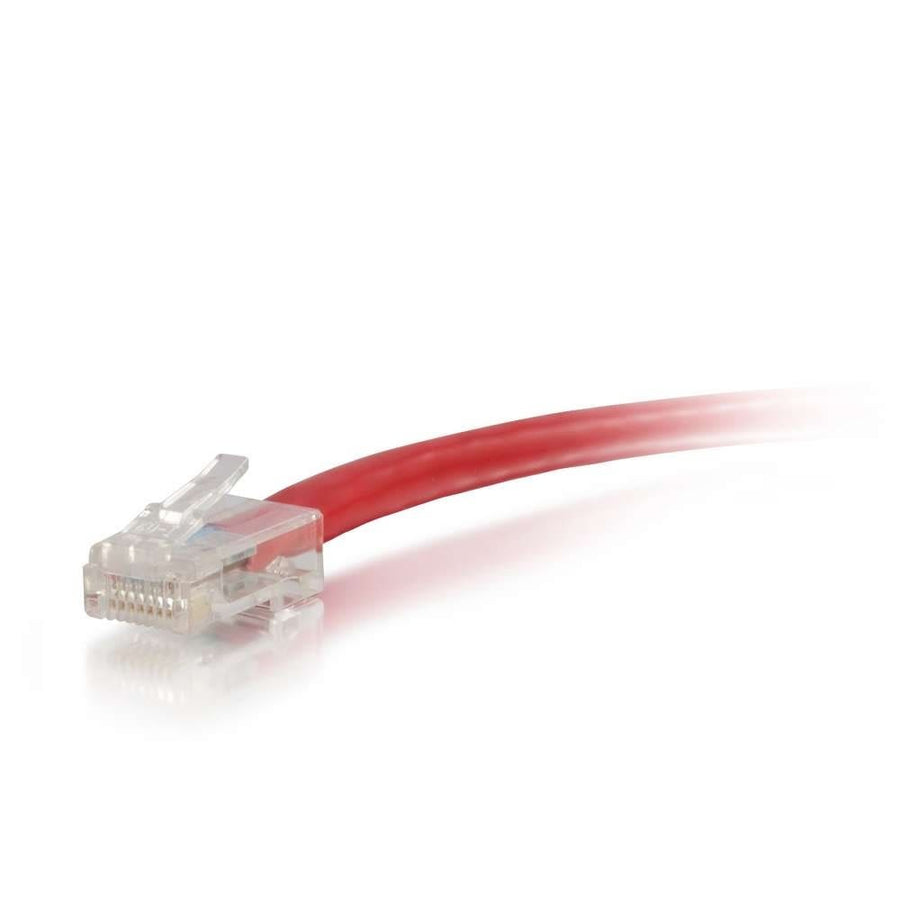

25ft (7.6m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Red
Red Cat6 Unshielded UTP patch cable, 25 ft (7.6 m) length, with non-booted RJ-45 connectors
The C2G CG04162 is a 25 ft (7.6 m) Cat6 Unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This red cable is built with 24 AWG stranded copper conductors and a PVC jacket, ensuring reliable performance in fast Ethernet and Gigabit computer networks. It meets all Cat6 TIA/EIA standards by reducing impedance and structural return loss (SRL) through bonded individual pairs that maintain twist-spacing to the termination point. This design specifically minimizes Near-End Crosstalk (NEXT) levels. The cable features a non-booted connector type with RJ-45 male ends and follows a T568B wiring scheme. It is rated for temperatures up to 75°C and is suitable for environments requiring easy color-coding to identify specific network segments. This part is part of a larger series of non-booted patch cables with various length and color options available to suit different installation requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 688 lbs (312.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041627 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring scheme for the C2G CG04162?
This patch cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is the C2G CG04162 TAA compliant?
No, this specific SKU is not TAA compliant, though it meets RoHS and REACH standards.
What is the maximum operating temperature for this Cat6 cable?
The cable has a temperature rating of up to 75°C.
Does this cable feature a boot on the connectors?
No, the CG04162 is a non-booted connector type patch cable.
What is the conductor material used in this red patch cable?
It is constructed from high quality stranded copper.
