25ft (7.6m) 3.5mm Stereo Audio Cable with Low Profile Connectors M/M - Plenum CMP-Rated
25 ft plenum-rated 3.5mm stereo audio cable with low-profile connectors for space-constrained in-wall installations

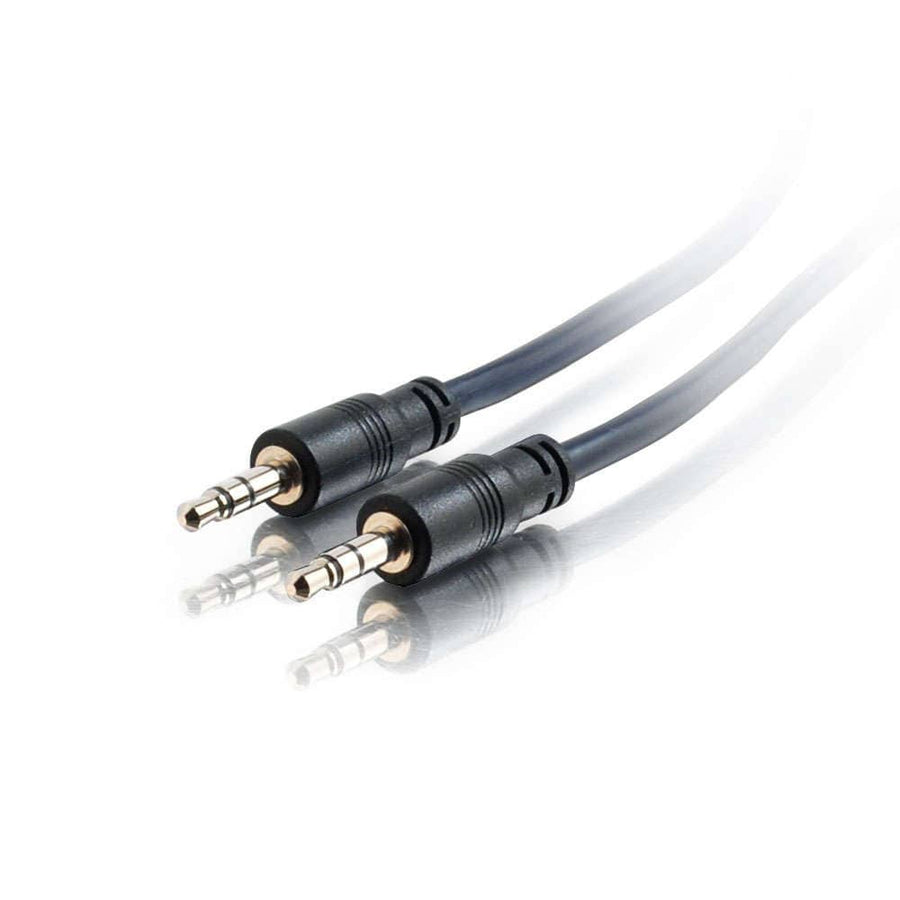

The C2G CG40516 is a 25 ft (7.6 m) 3.5mm stereo audio cable designed to meet the specific requirements of professional AV installations in commercial and educational environments. This cable is CMP-rated and FT6 rated, providing the necessary fire protection for running through walls and plenum air spaces without requiring additional conduit. To address the challenges of tight spaces, the cable features low-profile 3.5mm stereo male connectors with a total depth of only 1.5 inches, which facilitates much easier connections in shallow wall boxes. The 0.13 in (3.4 mm) cable diameter and 22 gauge twisted pair construction, featuring foil shielding, minimize the clearance required in plenum spaces while maintaining signal integrity. This 25 ft cable is an ideal solution for integrators needing reliable, plenum-compliant audio connectivity in crowded infrastructure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.13 in (3.4 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | 167°F (75°C) |
| Shipping Weight | 0.37 lbs (0.2 kg) |
| Wire Gauge | 22 |
| Cable Type | Audio |
| Connector 1 | (1) 3.5mm Stereo Male(1) 3.5mm Stereo Male |
| Connector 2 | (1) 3.5mm Stereo Male(1) 3.5mm Stereo Male |
All other specifications 7
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120405160 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Resources
Questions about this part
Will the CG40516 work in a plenum air space?
Yes, the CG40516 is CMP rated and FT6 rated, making it suitable for use in plenum air spaces and within walls without the need for conduit.
Can this cable fit in shallow wall boxes?
The CG40516 features low-profile 3.5mm stereo male connectors with a 1.5 inch total depth, which is designed to save space and allow for easier connections in tight wall cavities.
Is the CG40516 a shielded cable?
Yes, this cable uses foil-shielded 22 AWG twisted pair wire to help ensure signal integrity during installation.
What is the diameter of the CG40516 cable?
The cable has a diameter of 0.13 in (3.4 mm), which helps reduce the amount of clearance required when running through walls and plenum spaces.
What certifications does this audio cable carry?
The CG40516 is listed with NDAA 889, RoHS, REACH, TSCA, and Prop 65 certifications.
