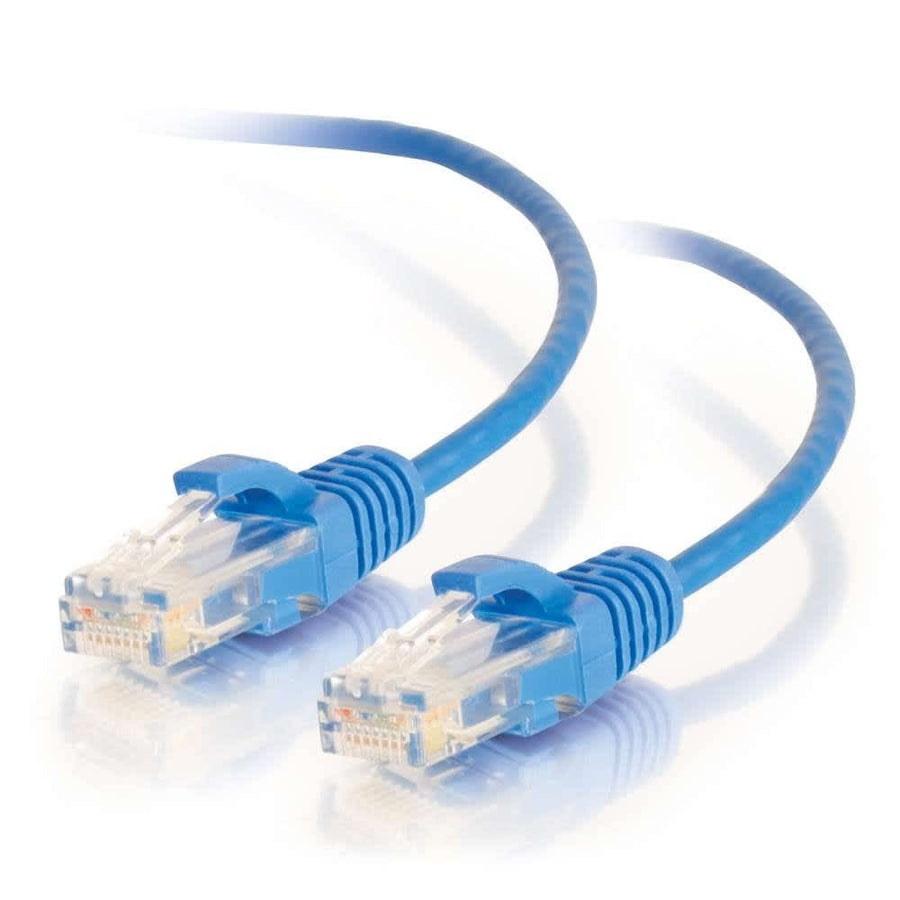

25ft (7.62m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Blue
Blue Cat6 slim patch cable, 25ft (7.6m) length, 28 AWG diameter for high-density datacenters
The C2G02217 is a 25 ft (7.6 m) Blue Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable designed specifically for high-density datacenter environments. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This slim profile, measuring 0.15 in (3.8 mm) in diameter, facilitates increased airflow within crowded racks and allows for a much smaller bend radius of 0.6 in (15.2 mm). Such tight routing capabilities make it an efficient choice for navigating through complex cable management panels. This cable supports data transfer rates of 10 GBPS and operates within a temperature range of -4°F to 176°F (-20°C to 80°C). The molded snagless boot provides strain relief and prevents accidental snags during installation. For PoE/PoE+ applications, note that bundles should be limited to 40 cables to ensure proper heat dissipation due to the reduced diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.31 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022176 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 QuickConnect RJ45 Keystone Insert in Orange
WP3476OR$6.49
RJ45 Snap & Go Cat6 Keystone Insert in White
WP3560WH$12.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6 QuickConnect RJ45 Keystone Insert in White - 50 Pack
WP3476WH50$269.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Questions about this part
What is the maximum channel length for this slim Cat6 cable?
For a 96 Meter Channel, you can use up to 6 meters of these slim network patch cables with 90 meters of horizontal cable.
Is this cable suitable for PoE applications?
Yes, but for PoE/PoE+ applications, it is recommended to limit cable bundles to 40 cables to manage heat dissipation.
What is the bend radius of the C2G02217?
The cable features a bend radius of 0.6 in (15.2 mm) due to its slim 28 AWG construction.
Will this cable work in high-density patch panels?
Yes, the reduced 0.15 in (3.8 mm) diameter and small bend radius are designed specifically for routing through cable management panels.
What is the maximum data transfer rate for this Cat6 cable?
This Cat6 cable is rated for data transfer rates of 10 GBPS.
