25 RU Cable-Entry Rear Door for BGR Racks
25 RU cable-entry rear door for BGR series racks, featuring vented steel construction for airflow and cable access

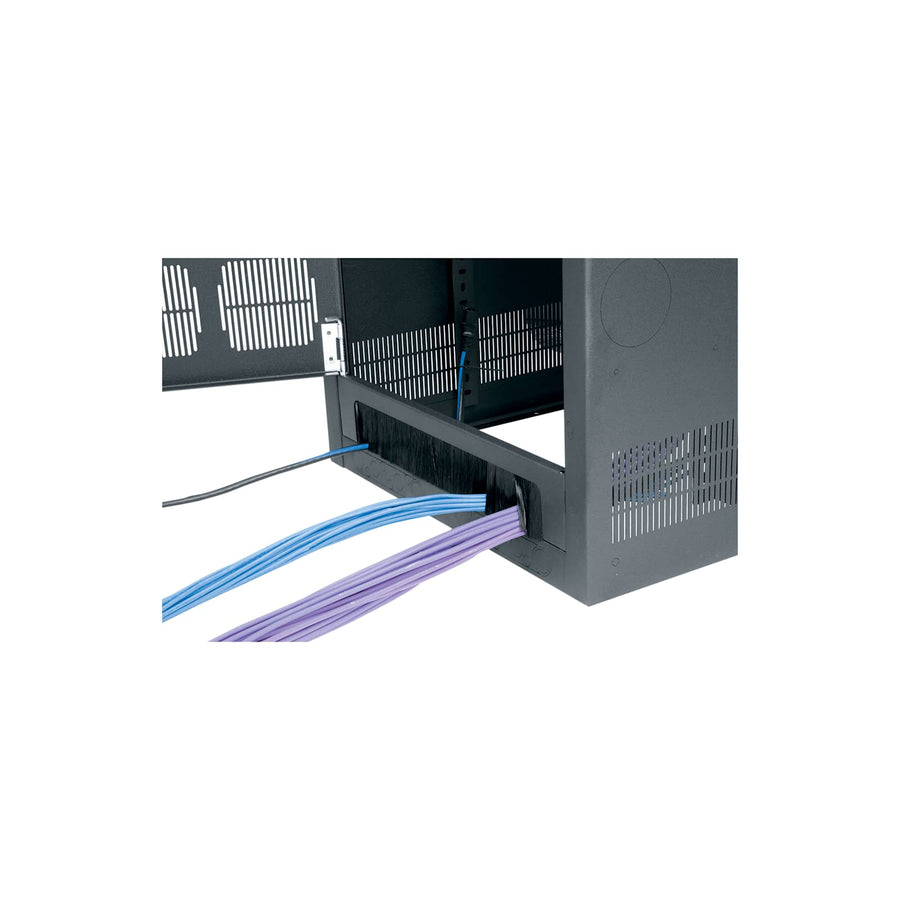

The Middle Atlantic BGR-RDC25 is a 25 RU cable-entry rear door designed specifically for use with the BGR series rack system. This steel construction door is designed to facilitate easier cable management by providing a large passage for cables, eliminating the need for time-consuming fishing during installation or maintenance. The door is vented to support thermal management, making it compatible with optional DC fan kits such as the FAN2-DC or the IFAN2-DC. To manage cable entry points, a brush grommet can be installed at either the top or the bottom of the rear door. This BGR series component is seismic rated and TAA compliant, ensuring reliability in professional integration environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 1.36 in (3.5 cm) |
| Height | 44.64 in (113.4 cm) |
| Rack Units | 25 RU |
| Shipping Weight | 16 lbs (7.3 kg) |
| Width | 20.3 in (51.6 cm) |
| Base Series | BGR |
| Seismic Rated | Yes |
| UPC | 656747147555 |
Resources
You'll need these with it
Questions about this part
Will this BGR-RDC25 work with my BGR rack?
Yes, this is a 25 RU rear door designed specifically for the BGR series of Middle Atlantic racks.
What can I use to add cooling to this door?
This is a vented door that accepts several optional DC fan kits, including the FAN2-DC or the 138 CFM IFAN2-DC with international power supply.
How do I manage cables passing through the door?
The door features a large cable passage and allows for the installation of a brush grommet at either the top or the bottom of the door.
Is this door suitable for seismic installations?
Yes, this part is seismic rated and is TAA compliant for government and professional installations.
Where can I find technical drawings for the BGR series?
You can download CAD technical specification drawings (.dwg), 3D CAD drawings (.stp, .sat), or Revit Models (.rfa) from the resources section.
