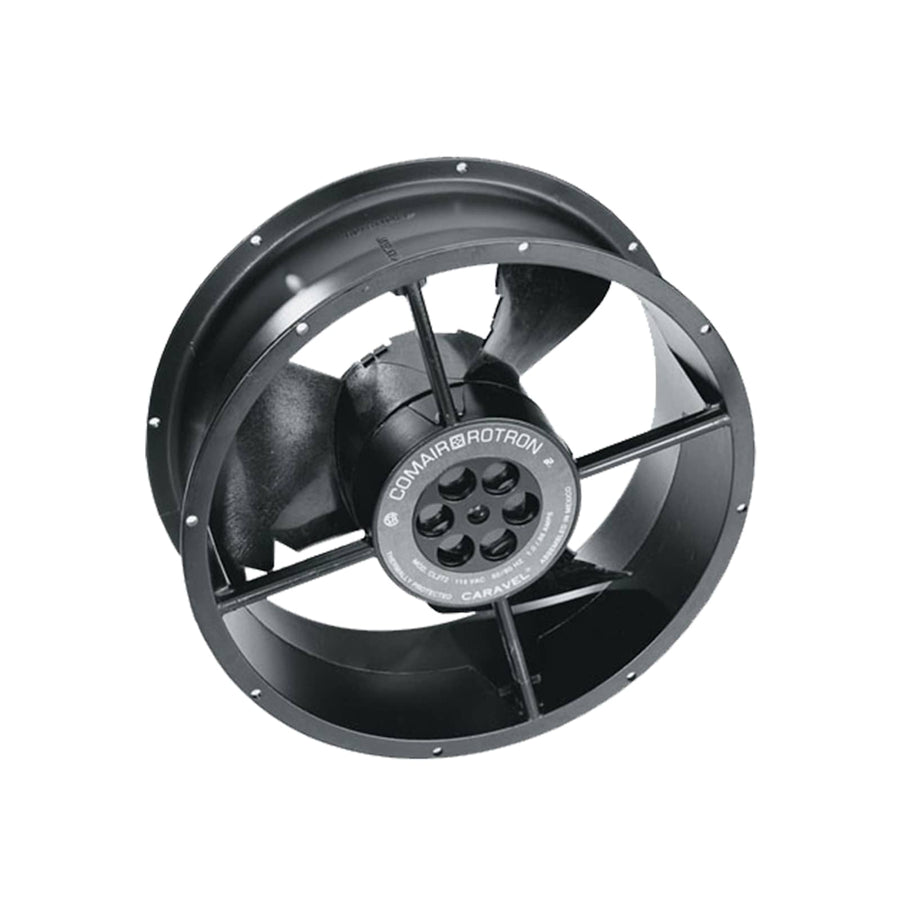

230V Fan 10 Inch, 550 CFM
10 inch active rack fan delivering 550 CFM at 220-240V AC for international thermal management applications
The FAN-254 is a 10 inch (25.4 cm) active rack fan designed for international thermal management applications requiring a 220 - 240 V AC power supply. This unit delivers 550 CFM of airflow to maintain optimal temperatures within your equipment rack. It features a smooth, ball-bearing design engineered for extra quiet operation and long life. The fan's dimensions are 10 in (25.4 cm) wide by 10 in (25.4 cm) high, with a depth of 3.5 in (8.9 cm). This specific model is intended for 230V systems and is available for international use. Please note that while the mounting hardware and cord are included with the unit, fan guards are not included and must be purchased separately if required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| CFM | 550 |
| Depth | 3.5 in (8.9 cm) |
| Fan Size | 10 in (25.4 cm) |
| Height | 10 in (25.4 cm) |
| Shipping Weight | 5 lbs (2.3 kg) |
| Volts AC | 220 - 240 V |
| Width | 10 in (25.4 cm) |
| Available Internationally | Yes |
All other specifications 5
| Component Type | Active |
| Fan Controller Included | No |
| Manufacturer | Middle Atlantic |
| Power Type | AC |
| UPC | 656747064425 |
Resources
You'll need these with it
Questions about this part
Will the FAN-254 work with my international power supply?
Yes, this unit is designed for 220 - 240 V AC input and is available for international use.
Does the FAN-254 include a fan controller?
No, this model does not include a fan controller.
What else do I need to purchase for a complete installation?
Fan guards are not included with this SKU; you can add the GUARD-10 10 Inch Fan Guard as a separate accessory.
What is the air volume delivery of this fan?
The FAN-254 is rated at 550 CFM.
What is the physical size of the fan unit?
The fan measures 10 in (25.4 cm) in height and width, with a depth of 3.5 in (8.9 cm).
