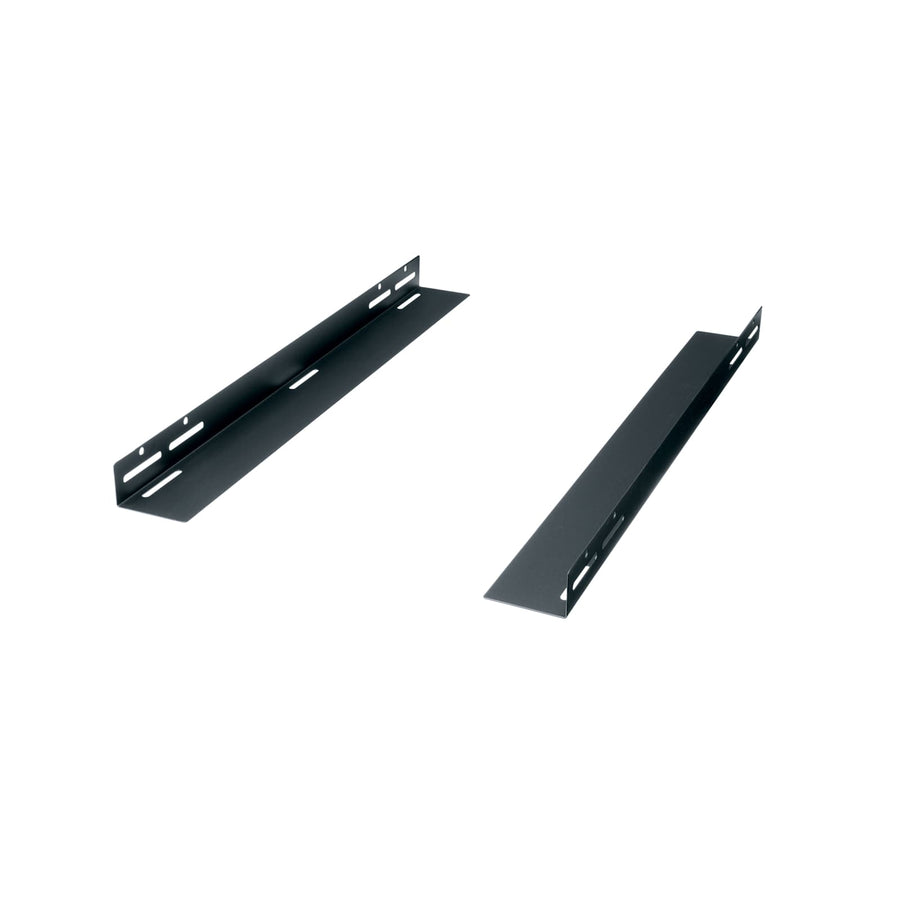

22 Inch Chassis Brackets
Chassis support brackets for 22 in equipment, designed for use with Z-rail or Z-rail adapters in specific Middle Atlantic racks
The Middle Atlantic CSA-22 provides a simple method for supporting heavy equipment within a rack while simultaneously facilitating necessary ventilation for high heat-generating devices. These 22 in (55.9 cm) depth brackets are sold as a pair and utilize 4 mounting points to secure equipment without the need for traditional rack screws. To function correctly, these must be attached to a Z-rail; they are not compatible with standard rackrail. This SKU is specifically designed for use with MRK, VRK, VMRK, and WMRK racks when paired with a Z-rail or Z-rail adapter. These brackets have a height of 1.75 in (4.4 cm) and a width of 3 in (7.6 cm), providing stable support for hardware with a weight capacity of 100 lbs (45.4 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 22 in (55.9 cm) |
| Height | 1.75 in (4.4 cm) |
| Package Count | 1 |
| Shipping Weight | 3.2 lbs (1.5 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 3 in (7.6 cm) |
| Color | Black |
| Mounting Points | 4 |
| UPC | 656747125430 |
Resources
Questions about this part
Will the CSA-22 work in a standard rackrail?
No, these chassis brackets must be attached to a Z-rail and are not compatible with standard rackrail.
What racks are compatible with the CSA-22?
They are compatible with MRK, VRK, VMRK, and WMRK racks when used with a Z-rail or Z-rail adapter.
How many brackets are included in a single order?
The CSA-22 is sold as a pair, so you will receive two brackets per package.
How much weight can these support?
These brackets feature a weight capacity of 100 lbs (45.4 kg).
What is the difference between the CSA-22 and other CSA series brackets?
This specific SKU is the 22 in (55.9 cm) depth version; other versions in the series offer different lengths such as 18 in, 20 in, 24 in, or 26 in.
