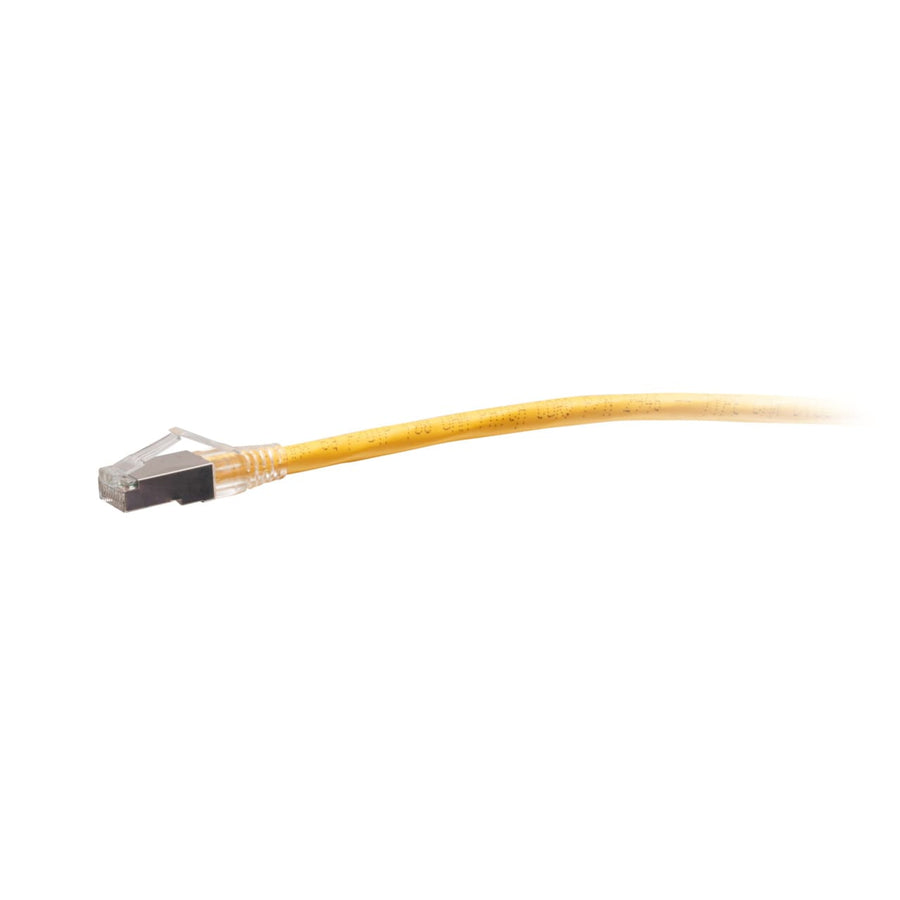

20ft (6.1m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Yellow
20ft Cat6a snagless shielded STP network cable in yellow, TAA-compliant for 10GBase-T high-speed performance
The C2G43910 is a 20ft (6.1m) TAA-compliant Cat6a snagless shielded (STP) network cable designed for high-bandwidth environments. This yellow cable is engineered to protect 10GBase-T network connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk through its shielded STP construction and aluminum foil shield. It utilizes high-quality, made in the USA stranded copper conductors and features 50-micron gold-plated contacts to maintain signal integrity. The snagless RJ45 connector design protects the clips from snapping, making it suitable for applications with high insertion cycles. This CMR rated cable uses a PVC jacket and is designed for riser applications. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it an appropriate choice for US government projects and facilities requiring TAA compliance. It is suitable for use with network adapters, hubs, switches, routers, and patch panels.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 20 ft (6.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.55 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439103 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43910 TAA compliant?
Yes, the C2G43910 is TAA compliant, making it approved for use in United States government projects and facilities.
What is the maximum speed and application for this cable?
This is a Cat6a cable designed for 10GBase-T (10 Gigabit Ethernet) applications and bandwidth-intensive voice, data, or video distribution.
Will this cable work for high-interference environments?
Yes, the shielded STP construction and aluminum foil shield are designed to counter EMI, RFI, and alien crosstalk.
What is the jacket rating for this Cat6a cable?
The C2G43910 is CMR rated for riser applications and features a PVC jacket.
What is the warranty for the C2G43910?
This network cable is covered by a lifetime warranty.
