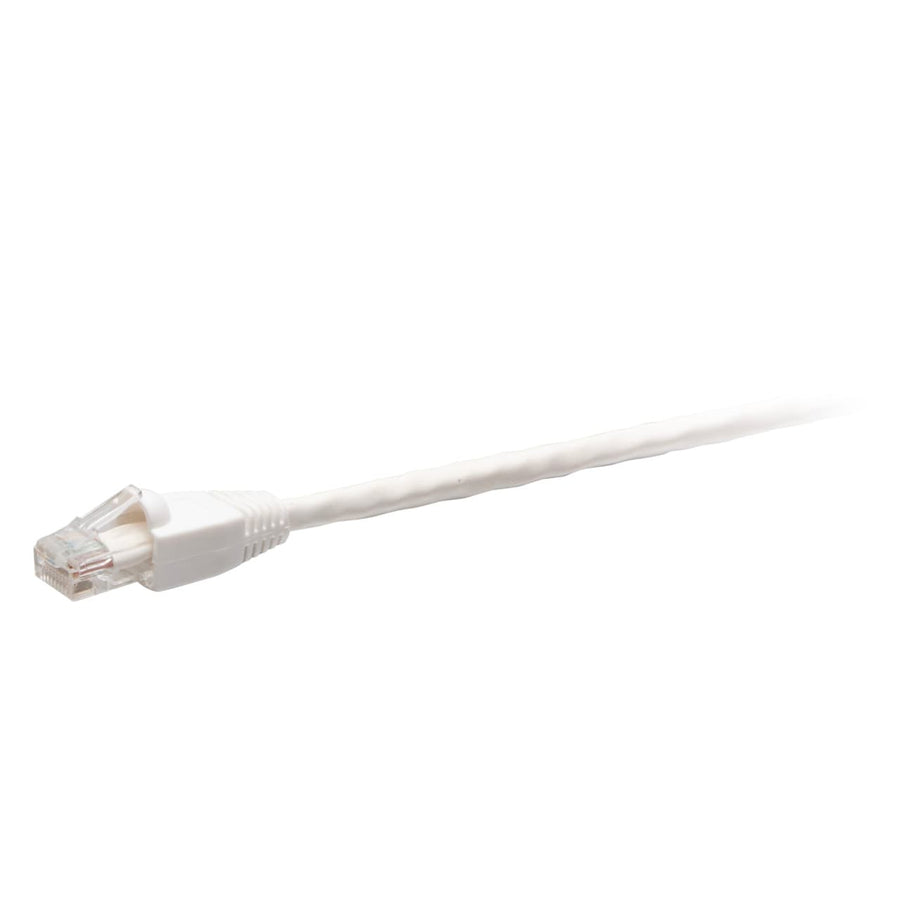

20ft (6.1m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - White
20ft TAA-compliant Cat6 snagless unshielded UTP network cable in white with copper conductors
The C2G43583 is a 20ft (6.1m) TAA-compliant F-Series Cat6 snagless unshielded (UTP) network cable in white. Built to meet the requirements for United States government projects and facilities, this cable is constructed with high-quality, made-in-the-USA copper cabling. This passive cable is designed for use with network adapters, hubs, switches, routers, and servers. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications. The cable features a 24 AWG stranded copper conductor with a 0.22 in (5.6 mm) diameter and 50-micron gold-plated contacts to maintain signal integrity. The molded snagless boot protects the RJ-45 clips from damage during installation and high-frequency insertion cycles, providing necessary strain relief. This CMR rated, riser-rated PVC jacket cable is suitable for various professional environments with an operating temperature range of -4° - 167°F (-20° - 75°C). The wiring scheme follows the T568B standard.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 20 ft (6.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.48 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435839 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43583 TAA compliant?
Yes, this is a TAA-compliant cable approved for use in United States government projects and facilities.
What is the maximum frequency and data rate for this Cat6 cable?
This cable provides an enhanced 600 MHz maximum frequency and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What kind of shielding does the C2G43583 use?
This is an unshielded UTP (Unshielded Twisted Pair) cable with 24 AWG stranded copper conductors.
Can I use this cable for high-traffic network ports?
Yes, the snagless RJ45 connector design is specifically engineered to protect the clips from snapping during high insertion cycles.
What is the jacket rating for this cable?
This cable features a CMR rated, riser-rated PVC jacket for professional installation environments.
