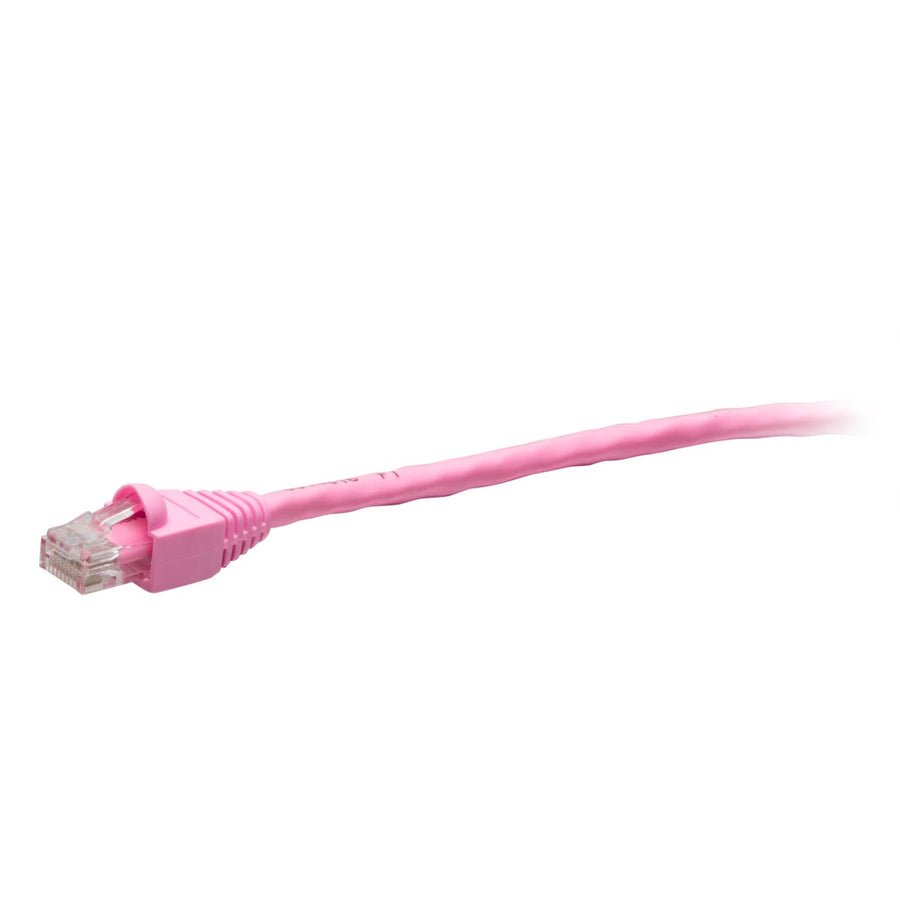

20ft (6.1m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Pink
20ft Pink Cat6 UTP network cable, TAA-compliant, snagless design, CMR riser rated, and 50-micron gold-plated contacts
The C2G43604 is a 20 ft (6.1 m) TAA-compliant Cat6 network cable designed for critical deployments in United States government projects and facilities. This unshielded twisted pair (UTP) cable features a pink PVC jacket that is CMR rated for riser applications. The cable uses 24 AWG stranded copper conductors to support 1000BASE-T (1 Gigabit Ethernet) applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. Each RJ-45 male connector is equipped with 50-micron gold-plated contacts to improve signal integrity and a snagless boot to prevent clip breakage during high-cycle installation. This passive cable operates within a temperature range of -4° - 167°F (-20° - 75°C). It is an ideal solution for connecting network adapters, hubs, switches, routers, and servers in environments where color-coding is required to manage network infrastructure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 20 ft (6.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.48 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436041 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43604 TAA compliant for government projects?
Yes, this C2G43604 cable is TAA-compliant and approved for use in United States government facilities and projects.
Can I use this Cat6 cable in a riser application?
Yes, this pink Cat6 cable features a CMR rated PVC jacket, making it suitable for riser applications.
What is the maximum frequency of this Cat6 cable?
This cable is constructed with high-quality copper to provide an enhanced 600 MHz maximum frequency for consistent performance.
What is the difference between the snagless and standard RJ45 connectors?
The snagless boot on the C2G43604 protects the clips from being snapped off, providing extra strain relief during high insertion cycles.
What standards does this network cable meet?
This cable meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
