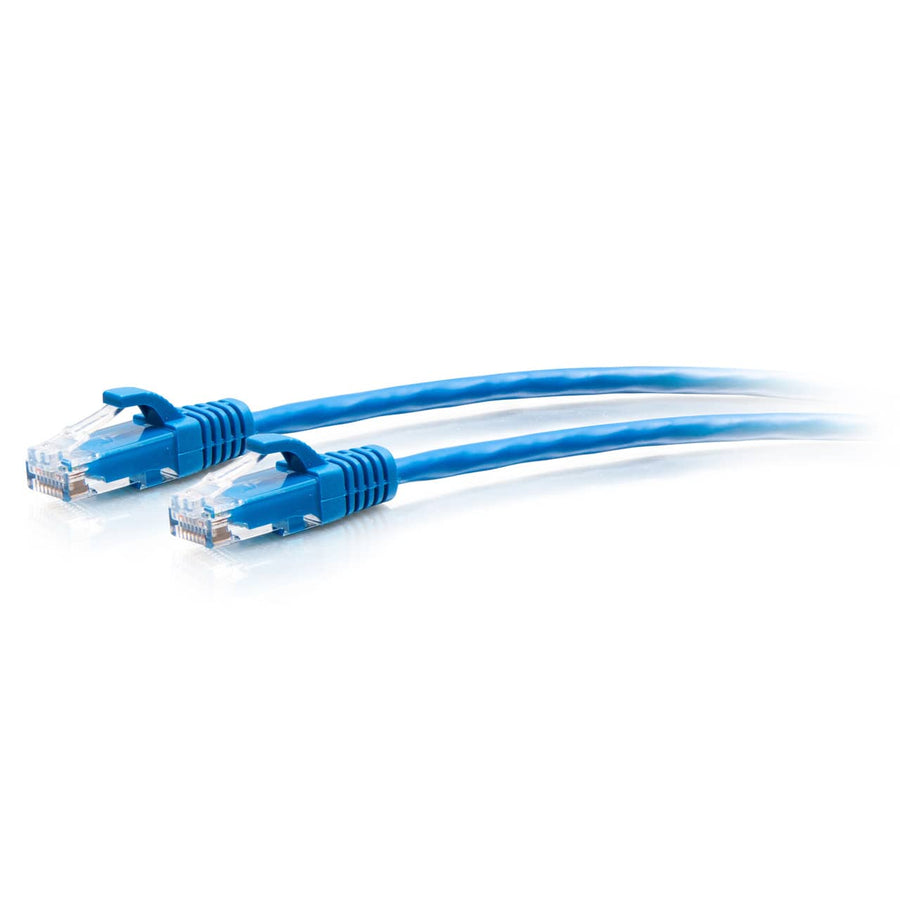

20ft (6.1m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Blue
20ft Cat6a slim patch cable, 28AWG unshielded UTP construction, 10 Gbps support, blue finish
The C2G30137 is a 20ft (6.1m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in blue. Designed for high-density environments like datacenters and large conference rooms, this cable utilizes 28AWG stranded copper conductors to significantly reduce the cable diameter to 0.19 in (4.8 mm). This slim profile increases airflow in tight rack spaces and provides greater flexibility for complex cable management. This Cat6a cable supports data transfer rates of up to 10 Gbps and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. Each cable features snagless, molded PVC boots for strain relief and RJ-45 male connectors with gold-plated contacts. The unshielded UTP construction is rated for standard non-rated applications and is compliant with NDAA 889, RoHS, REACH, and CE standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.84 lbs (0.4 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301370 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Will this Cat6a cable work for PoE or VoIP applications?
Yes, the Cat6a technology and 28AWG conductors support Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) requirements.
What is the maximum data speed for the C2G30137?
This cable supports data transfer rates of up to 10 Gbps.
Is this cable suitable for high-density rack installations?
Yes, the slim 0.19 in (4.8 mm) diameter allows for increased airflow and easier management in crowded spaces.
What certifications does this patch cable carry?
The C2G30137 is compliant with NDAA 889, RoHS, REACH, and CE standards.
What documentation is available for submittals?
You can access the Cat6a Slim Patch Cable Series Datasheet and the C2G Ethernet Patch Cable Matrix via the technical documents provided.
