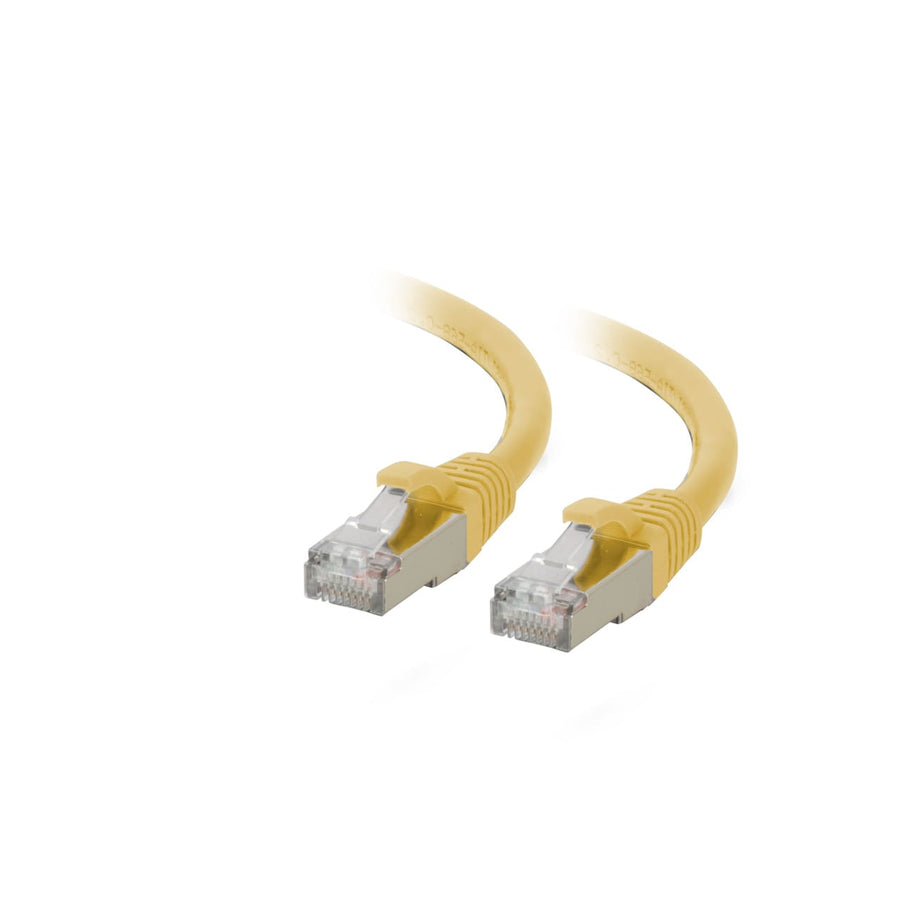

20ft (6.1m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Yellow
20ft Cat6A STP patch cable with snagless connectors, yellow PVC jacket, and 10Gbps data transfer rate
The C2G07380 is a 20ft (6.1m) Cat6A Snagless Shielded (STP) Ethernet network patch cable in yellow. Designed to support 10Gbps data transfer rates, this cable is built for high-performance environments such as network adapters, switches, routers, hubs, and HDBaseT applications. It provides a 500 mHz bandwidth capability and is engineered to protect high-speed connections from electromagnetic interference and noise through its shielded twisted pair (STP) construction. Each cable features stranded copper conductors and a PVC jacket with an operating temperature range of -4°F to 176°F (-20°C to 80°C). The T568B wiring scheme and 26 AWG wire gauge ensure standard compatibility, while the snagless, booted RJ-45 male connectors protect the locking tab in high-density installations. This cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements, ensuring reduced impedance and structural return loss (SRL) for bandwidth-intensive video and data distribution.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.55 lbs (0.3 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073802 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
What is the maximum data rate for the C2G07380?
The C2G07380 supports a data transfer rate of 10 Gbps, making it suitable for high-speed 10 Gigabit network environments.
What applications is this Cat6a patch cable suitable for?
This cable is designed for use with network adapters, hubs, switches, routers, and HDBaseT applications.
Does this cable include shielding to prevent interference?
Yes, the C2G07380 uses Shielded STP (Shielded Twisted Pair) construction to protect connections from noise and electromagnetic interference.
What is the connector type on this cable?
This cable features booted, snagless RJ-45 male connectors designed to protect the connector's locking tab in high-density setups.
Is the C2G07380 compliant with industry standards?
This cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a requirements.
