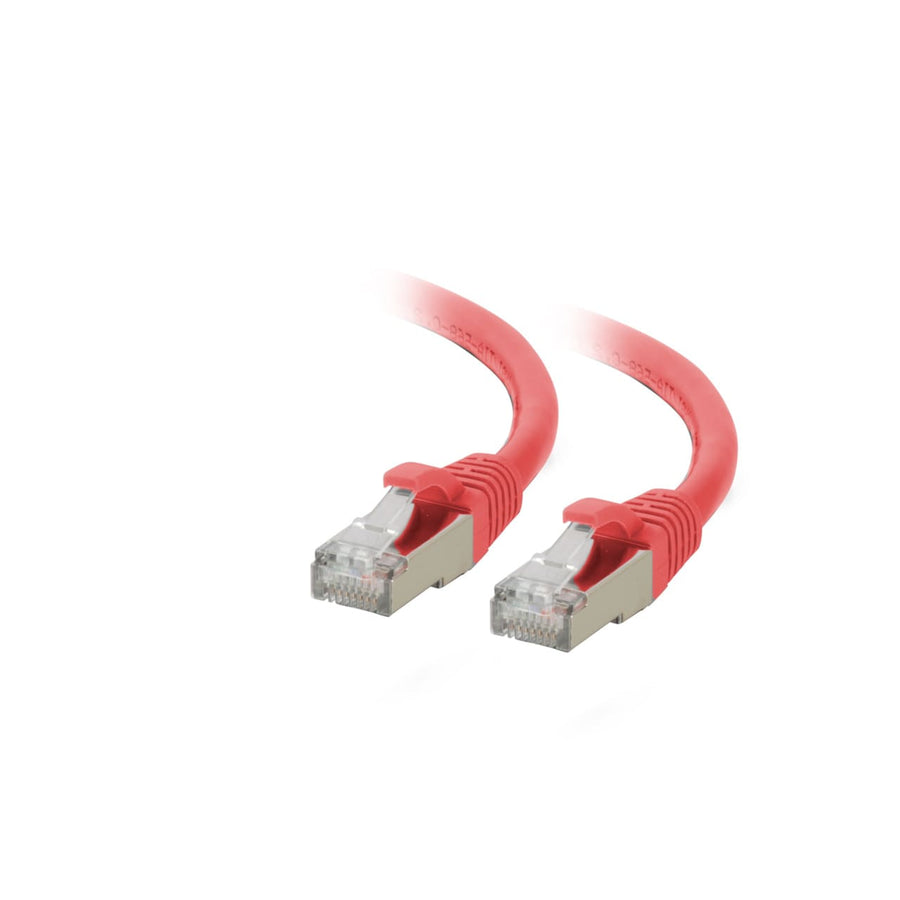

20ft (6.1m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Red
20ft Red Cat6a Snagless Shielded (STP) Ethernet patch cable supporting 10Gbps data transfer rates
The C2G07370 is a 20 ft (6.1 m) Red Snagless Shielded (STP) Cat6a Ethernet patch cable designed for high-speed 10Gbps network environments. This cable is engineered to support bandwidth-intensive applications by drastically reducing impedance and structural return loss (SRL). Utilizing a shielded twisted pair (STP) construction with copper stranded conductors, it protects sensitive equipment from electromagnetic interference and noise. Each cable is fully tested to meet ANSI/TIA 568-C.2 Cat6a component requirements, ensuring reliable performance for 10GBase-T ports. The snagless connector design includes a PVC hood to protect the RJ-45 latch in high-density environments like switches or patch panels. With a 500 mHz bandwidth and 50 µ in gold plating on the connectors, this cable is suitable for connecting network adapters, hubs, switches, routers, and modems. The 26 AWG wire is terminated with a T568B wiring scheme and features an FMPE (Foam Polyethylene) insulation material. This red-jacketed cable is ideal for color-coding critical network paths in complex installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.55 lbs (0.3 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073703 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit networks?
Yes, the C2G07370 supports 10Gbps data transfer rates and is designed for 10GBase-T equipment and HDBaseT applications.
Is this cable shielded to prevent interference?
Yes, this is a Shielded STP (Shielded Twisted Pair) cable designed to protect high-speed networks from electromagnetic interference and noise.
What is the benefit of the snagless design on this red cable?
The snagless connector design includes a protective hood that shields the RJ-45 lock from damage, making it ideal for high-density environments.
What specific standards does this patch cable meet?
This cable is fully tested to meet the ANSI/TIA-568-C.2 Cat6a component requirements.
What is the bend radius of this 20ft cable?
The C2G07370 has a minimum bend radius of 1.95 in (49.6 mm).
