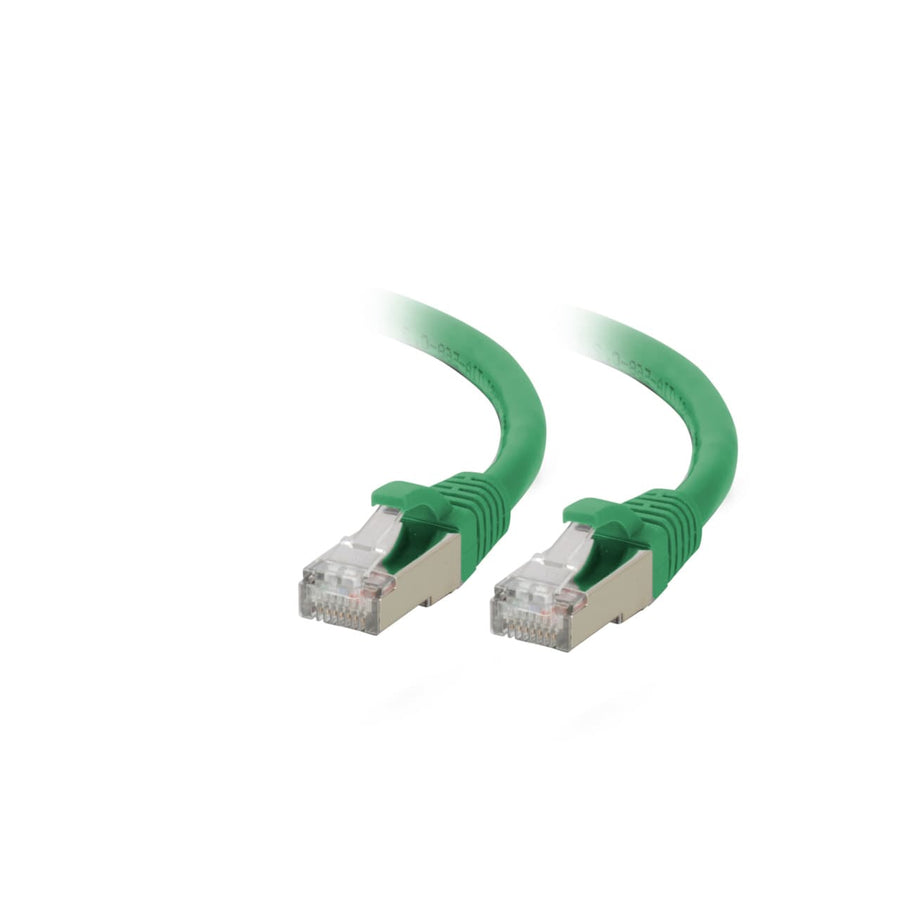

20ft (6.1m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Green
20ft Cat6a STP snagless patch cable in green, supporting 10Gbps data transfer with shielded twisted pair construction
The C2G07360 is a 20ft (6.1m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable in green, engineered specifically for high-speed 10Gbps network environments. This cable is designed for use with 10GBase-T ports and critical equipment including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Its shielded twisted pair (STP) construction provides vital protection against electromagnetic interference (EMI) and noise, making it suitable for bandwidth-intensive applications where data integrity is paramount. The cable features a T568B wiring scheme and 26 AWG copper stranded conductors. Each individual pair is bonded together to maintain consistent twist-spacing up to the termination point, which minimizes Near-End Crosstalk (NEXT) levels. The snagless connector design is ideal for high-density environments, protecting the RJ-45 connector lock from damage. This Cat6a component cable is fully tested to meet ANSI/TIA-568-C.2 requirements and is rated for a 500 mHz bandwidth. The jacket is made of PVC, and the connectors feature 50 µ in gold plating on the contacts. This green cable is part of a larger series available in various lengths and colors to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.55 lbs (0.3 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073604 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Will this C2G07360 cable work with my 10GbE switch?
Yes, this Cat6a STP cable is designed for 10GBase-T ports and equipment, including switches, routers, and network adapters, supporting 10Gbps speeds.
What is the maximum distance for Cat6a performance?
This series supports 10 Gigabit networks at distances up to 328ft (100m) for maximum performance.
Does this cable provide protection against interference?
Yes, the shielded twisted pair (STP) construction is specifically designed to protect high-speed networks from noise and electromagnetic interference.
What certification standards does this cable meet?
This patch cable is fully tested to meet ANSI/TIA-568-C.2 Cat6a requirements for component-level performance.
Is the C2G07360 part of a larger color-coding system?
Yes, this green cable is one of many options available in various colors and lengths to help organize and color-code network installations.
